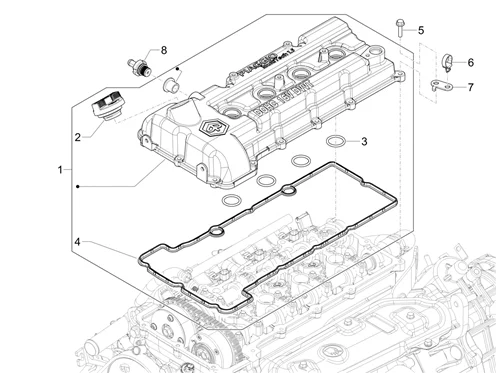

Moteur : 01.09 COUVERCLE CULASSE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/998/Porter_NP6_(TW_3000)_01.09.png)
1 |
1A013111 COUVRE-CULASSE COMPLET Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
1A021746 - THREADED CAP Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
1A021746 - THREADED CAP Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/1/2/6/img/173126.jpg)
3 |
JOINT TORIQUE DE COUVERCLE DE CULASSE (BOUGIE) ORIGINE PIAGGIO PORTER NP6 2021> -1A013381 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/1/2/7/img/173127.jpg)
4 |
JOINT COUVERCLE CULASSE ORIGINE PIAGGIO PORTER NP6 2021> -1A013384 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/9/4/4/img/110944.JPG)
5 |
VIS BRIDE TH (M6X25) ORIGINE PIAGGIO COMMUN A LA GAMME -B010073 Plus d'informationsQuantité requise : 12 |
||||||
|
6 |
1A019282 PLATE Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
1A005533 PLAQUETTE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/3/1/2/8/img/173128.jpg)
8 |
VANNE PCV ORIGINE PIAGGIO PORTER NP6 2021> -1A017305 Plus d'informationsQuantité requise : 1 |
