Eclatés de véhicule - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 0 Porter 1000-1300 Pick-Van 1992-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

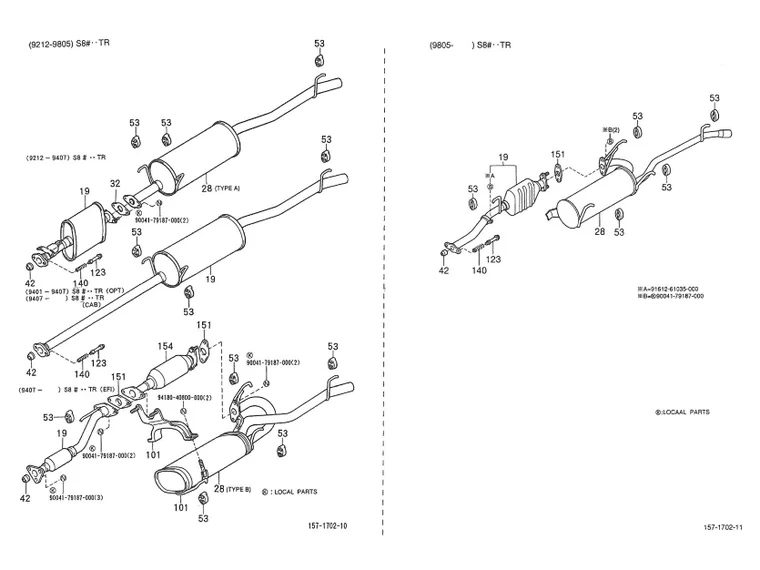

Moteur : 01.200 POT D’ÉCHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/343/Porter_1000-1300_Pick-Van_1992-2009_01.200.PNG)
19 |
1741087Z06000 - SILENCIEUX Plus d'informationsQuantité requise : 1 |
||||||
|
19 |
1742087520000 ECHAPPEMENT PRIMAIRE Plus d'informationsQuantité requise : 1 |
||||||
|
19 |
1742087Z01000 SILENCIEUX Plus d'informationsQuantité requise : 1 |
||||||
|
19 |
263162 SILENCIEUX Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/3/7/4/3/img/123743.jpg)
28 |
POT ECHAPPEMENT ARRIERE ORIGINE PIAGGIO PORTER VAN MOTEUR 1300 CC 1994>1998 -1743087Z15000 Plus d'informationsQuantité requise : 1 |
||||||
|
28 |
1743087Z04000 - ECHAPPEMENT AR * Plus d'informationsQuantité requise : 1 |
||||||
|
28 |
POT ECHAPPEMENT ORIGINE PIAGGIO PORTER ZAPS85 1300CCC HCE (PARTIE FINALE) 1998>2009 -1743087Z14000 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/4/5/9/img/118459.jpg)
32 |
JOINT ECHAPPEMENT ORIGINE PIAGGIO PORTER 1998>2020 -B005007- Plus d'informationsQuantité requise : 1 |
||||||
|
42 |
1745187507000 JOINT Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/7/8/4/img/117784.JPG)
42 |
JOINT ECHAPPEMENT ORIGINE PIAGGIO PORTER 1300CM -1745187710000- Plus d'informationsQuantité requise : 1 |
||||||
|
42 |
9004817015000 JOINT Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/4/1/9/img/113419.jpg)
53 |
SILENTBLOC POT ECHAPPEMENT ORIGINE PIAGGIO PORTER 2020< -1756787Z03000- Plus d'informationsQuantité requise : 1 |
||||||
|
53 |
1756787Z02000 SUPPORT Plus d'informationsQuantité requise : 2 |
||||||
|
101 |
1757287Z04000 COLLIER Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/0/0/0/img/116000.jpg)
123 |
BOULON/VIS FIXATION ECHAPPEMENT ORIGINE PIAGGIO PORTER 1998>2010 -1756987703000- Plus d'informationsQuantité requise : 1 |
||||||
|
140 |
1715287501000 - RESSORT Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/9/6/3/4/img/119634.jpg)
140 |
RESSORT DE BRIDE ECHAPPEMENT ORIGINE PIAGGIO PORTER -1715287502000- Plus d'informationsQuantité requise : 2 |
||||||
|
140 |
1715287Z01000 RESSORT Plus d'informationsQuantité requise : 2 |
||||||
|
142 |
9004560227000 ENTRETOISE Plus d'informationsQuantité requise : 1 |
||||||
|
151 |
JOINT ECHAPPEMENT ORIGINE PIAGGIO PORTER 1998>2020 -B005007- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/3/4/9/img/110349.jpg)
155 |
ECROU BRIDE SILENCIEUX ORIGINE PIAGGIO PORTER 1998>2020 -9004179187000- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/4/9/1/img/110491.jpg)
156 |
VIS TH (8X40) AVEC RONDELLE ORIGINE PIAGGIO COMMUN A LA GAMME -D9161160840- Plus d'informationsQuantité requise : 1 |
||||||
|
157 |
ECROU BRIDE SILENCIEUX ORIGINE PIAGGIO PORTER 1998>2020 -9004179187000- Plus d'informationsQuantité requise : 2 |
||||||
|
159 |
VIS TH (8X40) AVEC RONDELLE ORIGINE PIAGGIO COMMUN A LA GAMME -D9161160840- Plus d'informationsQuantité requise : 1 |
||||||
|
161 |
ECROU BRIDE SILENCIEUX ORIGINE PIAGGIO PORTER 1998>2020 -9004179187000- Plus d'informationsQuantité requise : 3 |
