Eclatés de véhicule - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 0 Porter 1000-1300 Pick-Van 1992-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

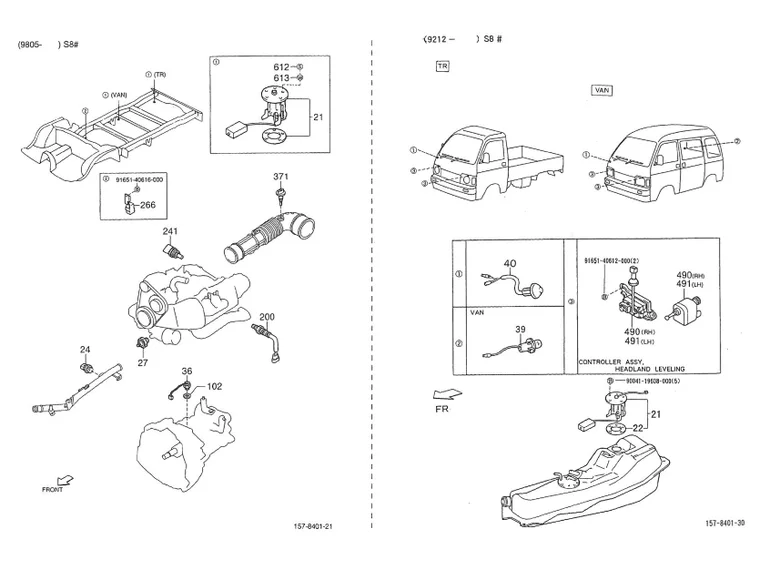

Circuit electrique : 05.121 INTERRUPTEUR - RELAIS II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/343/Porter_1000-1300_Pick-Van_1992-2009_05.121.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/5/7/7/img/117577.jpg)
21 |
JAUGE A ESSENCE ORIGINE PIAGGIO PORTER PICK-UP 1992>2009 -B023071- Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/0/6/3/img/118063.jpg)
21 |
JAUGE A CARBURANT ORIGINE PIAGGIO PORTER VAN 1992>2013/04 -B023072- Plus d'informationsQuantité requise : 1 |
|||||||||
22 |
8336187201000 JOINT Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/9/8/3/8/img/119838.jpg)
24 |
SONDE RADIATEUR 1400 VERTE AVEC 3 COSSES D20 ORIGINE PIAGGIO PORTER 1992>2009 -8343087Z03000- Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/9/3/6/3/img/119363.JPG)
27 |
CONTACTEUR/MANO DE PRESSION HUILE ORIGINE PIAGGIO PORTER 1992>2010 -8353087103000- Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/0/8/3/img/121083.jpg)
36 |
CONTACTEUR DE FEU DE RECUL ORIGINE PIAGGIO PORTER 1992>2009, CARGO 1998>2005 -8421097501000- Plus d'informationsQuantité requise : 1 |
|||||||||
|
39 |
D8423087504 INTERRUPTEUR Plus d'informationsQuantité requise : 1 |
|||||||||
|
40 |
D8423087504 INTERRUPTEUR Plus d'informationsQuantité requise : 1 |
|||||||||
|
200 |
8946587504000 CAPTEUR Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/5/7/7/img/122577.jpg)
241 |
CAPTEUR/SONDE TEMPERATURE EAU ORIGINE PIAGGIO PORTER 1992>2009 -8942287101- Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/0/4/1/8/img/120418.jpg)
266 |
RELAIS DE VENTILATEUR ORIGINE PIAGGIO PORTER 1998>2009 -8863087528000 Plus d'informationsQuantité requise : 1 |
|||||||||
|
371 |
8942487703000 SONDE Plus d'informationsQuantité requise : 1 |
|||||||||
|
490 |
BOUTON REGLAGE DE PHARE ORIGINE PIAGGIO PORTER -8118087Z01000- Plus d'informationsQuantité requise : 1 |
|||||||||
|
491 |
BOUTON REGLAGE DE PHARE ORIGINE PIAGGIO PORTER -8118087Z01000- Plus d'informationsQuantité requise : 1 |
|||||||||
|
615 |
9165140616000 BOULON Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/2/2/3/img/110223.JPG)
620 |
VIS TH (6X12) AVEC RONDELLE ORIGINE PIAGGIO COMMUN A LA GAMME -D9165140612- Plus d'informationsQuantité requise : 2 |
|||||||||
