Eclatés de véhicule - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 0 Porter 1000-1300 Pick-Van 1992-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

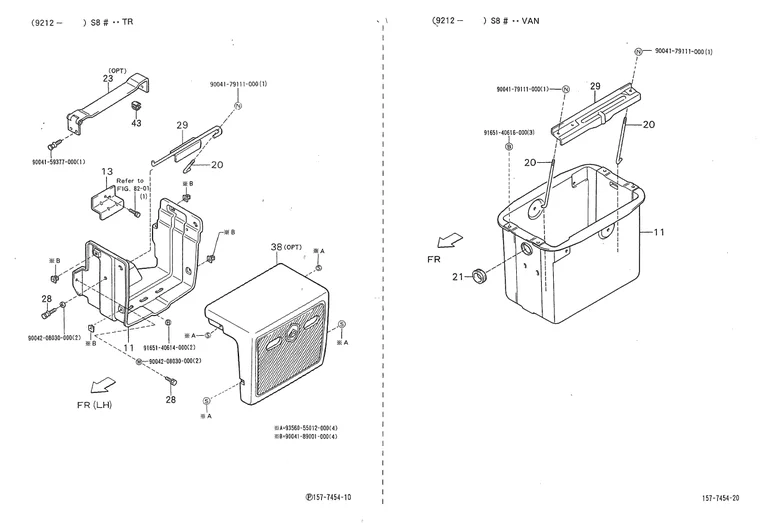

Chassis : 04.380 SUPPORT BATTERIE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/343/Porter_1000-1300_Pick-Van_1992-2009_04.380.PNG)
11 |
7440387Z01000 PORTE BATT. Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
SUPPORT BATTERIE ORIGINE PIAGGIO PORTER 2009< -7440387Z03000- Plus d'informationsQuantité requise : 1 |
||||||
|
20 |
7445187Z02000 BOULON Plus d'informationsQuantité requise : 1 |
||||||
|
21 |
9004480123000 PASSE-CÂBLE Plus d'informationsQuantité requise : 1 |
||||||
|
23 |
D7441787Z01 SUPPORT Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/6/2/img/109062.JPG)
28 |
VIS TORX (6X25) ORIGINE PIAGGIO COMMUN A LA GAMME -1A000352- Plus d'informationsQuantité requise : 2 |
||||||
|
28 |
VIS TORX (6X25) ORIGINE PIAGGIO COMMUN A LA GAMME -1A000352- Plus d'informationsQuantité requise : 2 |
||||||
|
29 |
7448187Z01000 COLLIER Plus d'informationsQuantité requise : 1 |
||||||
|
38 |
7446187Z01000 COUVERCLE Plus d'informationsQuantité requise : 1 |
||||||
|
43 |
D4815587Z01 ECROU Plus d'informationsQuantité requise : 1 |
||||||
|
45 |
9004159377000 VIS Plus d'informationsQuantité requise : 1 |
||||||
|
46 |
9004208030000 RONDELLE Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/0/9/5/img/112095.JPG)
47 |
VIS PARKER (5X22) CRUCIFORME ORIGINE PIAGGIO COMMUN A LA GAMME-9356055012000- Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/4/6/0/img/111460.jpg)
48 |
CLIPS ORIGINE PIAGGIO PORTER 2020< -004189001000- Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/1/9/8/img/151198.jpg)
49 |
BOULON TH (6X14) AVEC RONDELLE ORIGINE PIAGGIO COMMUN A LA GAMME -CM287314- Plus d'informationsQuantité requise : 2 |
||||||
|
52 |
9165140616000 BOULON Plus d'informationsQuantité requise : 3 |
