Eclatés de véhicule - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 0 Porter 1000-1300 Pick-Van 1992-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

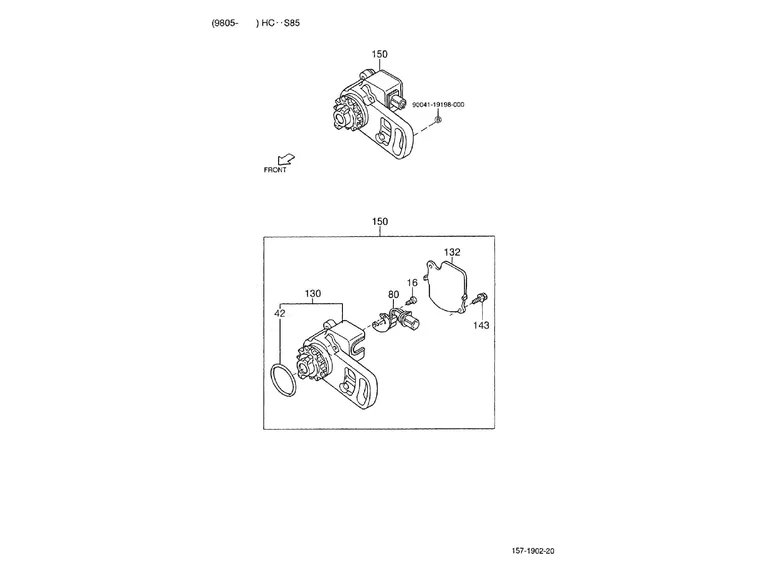

Moteur : 01.241 ALLUMEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/343/Porter_1000-1300_Pick-Van_1992-2009_01.241.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/4/1/5/img/114415.jpg)
42 |
JOINT TORIQUE ALLUMEUR ORIGINE PIAGGIO PORTER 1998>2010 -1919487102000- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/3/2/8/4/img/123284.JPG)
80 |
CAPTEUR ARBRE A CAMES ORIGINE 1300 PORTER 2000>2009 -1930087101000- Plus d'informationsQuantité requise : 1 |
||||||
|
80 |
CAPTEUR ARBRE A CAMES ORIGINE 1300 PORTER 2000>2009 -1930087101000- Plus d'informationsQuantité requise : 1 |
||||||
130 |
1923587120000 KIT JOINT Plus d'informationsQuantité requise : 2 |
||||||
|
132 |
1912187216000 PLAQUE Plus d'informationsQuantité requise : 1 |
||||||
|
143 |
1923287205000 RONDELLE Plus d'informationsQuantité requise : 2 |
||||||
|
150 |
CAPTEUR ARBRE A CAMES ORIGINE 1300 PORTER 2000>2009 -1930087101000- Plus d'informationsQuantité requise : 1 |
||||||
|
151 |
9004119198000 BOULON Plus d'informationsQuantité requise : 2 |
