Eclatés de véhicule - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 0 Porter 1000-1300 Pick-Van 1992-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

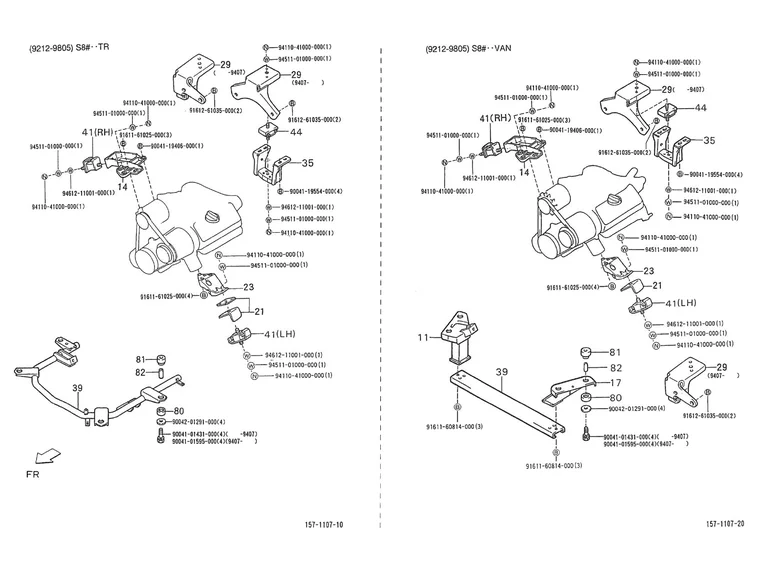

Moteur : 01.070 SUPPORT MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/343/Porter_1000-1300_Pick-Van_1992-2009_01.070.PNG)
23 |
1231587712000 SUPPORT Plus d'informationsQuantité requise : 1 |
|||||||||
|
23 |
1231587Z07000 SUPPORT BV Plus d'informationsQuantité requise : 1 |
|||||||||
|
29 |
1232187553000 SUPPORT MOTEUR AR Plus d'informationsQuantité requise : 1 |
|||||||||
|
29 |
1232187548000 SUPPORT Plus d'informationsQuantité requise : 1 |
|||||||||
|
35 |
1232287Z03000 SUPPORT Plus d'informationsQuantité requise : 1 |
|||||||||
|
35 |
1232287Z01000 SUPPORT Plus d'informationsQuantité requise : 1 |
|||||||||
|
39 |
5128187Z03000 ELEMENT Plus d'informationsQuantité requise : 1 |
|||||||||
|
39 |
5102287Z02000 SUPPORT MOTEUR Plus d'informationsQuantité requise : 1 |
|||||||||
|
39 |
SUPPORT MOTEUR AVANT ORIGINE PIAGGIO PORTER 1992>2010 -5102587Z04000- Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/0/7/7/6/img/120776.JPG)
41 |
SILENTBLOC SUPPORT MOTEUR DROIT ORIGINE PIAGGIO PORTER 1998>2009 -1236187513000- Plus d'informationsQuantité requise : 1 |
|||||||||
|
41 |
SILENTBLOC SUPPORT MOTEUR GAUCHE ORIGINE PIAGGIO PORTER 1998>2009 -1236287513000- Plus d'informationsQuantité requise : 1 |
|||||||||
|
44 |
1230687502 SUPPORT Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/2/5/5/img/111255.jpg)
80 |
TAMPON SUPPORT MOTEUR ORIGINE PIAGGIO PORTER 2020< -9004540073000- Plus d'informationsQuantité requise : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/2/3/5/img/111235.jpg)
81 |
TAMPON BARRE AVANT DE CHASSIS ORIGINE PIAGGIO PORTER 2020< -9004540074000- Plus d'informationsQuantité requise : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/2/3/5/img/112235.jpg)
82 |
ENTRETOISE SUPPORT MOTEUR ORIGINE PIAGGIO PORTER 2020< -D9004560252- Plus d'informationsQuantité requise : 4 |
|||||||||
|
84 |
9451101000000 RONDELLE Plus d'informationsQuantité requise : 10 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/5/0/3/img/111503.JPG)
91 |
RONDELLE PLATE (10.4X46X3) ORIGINE PIAGGIO COMMUN A LA GAMME -9004201291000- Plus d'informationsQuantité requise : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/8/9/8/img/111898.jpg)
92 |
VIS TH (10X59) AVEC RONDELLE ORIGINE PIAGGIO COMMUN A LA GAMME -D9004101431- Plus d'informationsQuantité requise : 4 |
|||||||||
|
100 |
9451101000000 RONDELLE Plus d'informationsQuantité requise : 4 |
|||||||||
