Eclatés de véhicule - MOTO GUZZI CALIFORNIA 1000 California III Carburatori 1000 1987-1993
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

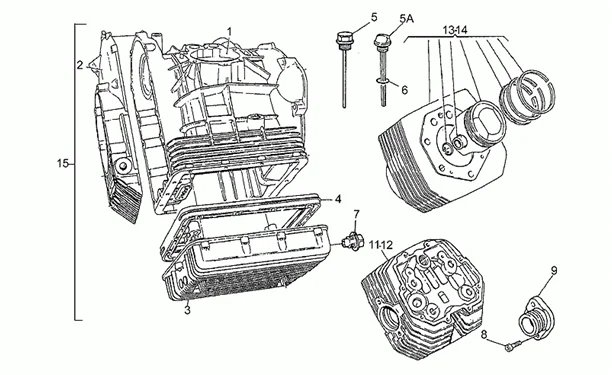

Moteur : 34.39 CARTER MOTEUR GRISE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/480/California_III_Carburatori_1000_1987-1993_34.39.PNG)
2 |
GU30001461 - COUVERCLE DISTRIBUTION Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
GU28004950 - BOUCHON DE REMPLISS Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/4/7/3/img/130473.jpg)
5 |
JAUGE HUILE ORIGINE MOTO GUZZI COMMUN A LA GAMME MOTEUR 2 SOUPAPES PAR CYLINDRE -GU30004910- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/2/2/img/132222.jpg)
6 |
JOINT TORIQUE (17,86X2,62) ORIGINE MOTO GUZZI COMMUN A LA GAMME -GU90706178- Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
GU12003702 - BOUCHON VID.HUILE Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
GU98622325 - VIS M6X25 Plus d'informationsQuantité requise : 2 |
||||||
|
11 |
GU28022146 - CULASSE Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
GU28022246 - CULASSE CYLINDRE G.GRISE Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
GU29060152 - CYLINDRE Plus d'informationsQuantité requise : 1 |
