Eclatés de véhicule - MOTO GUZZI CALIFORNIA 1000 California III Carburatori 1000 1987-1993
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

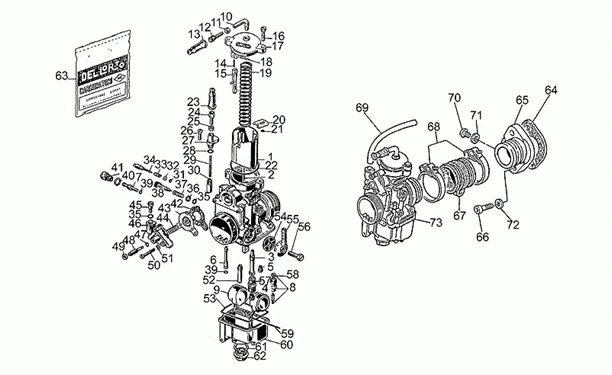

Moteur : 34.36 CARBURATEURS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/480/California_III_Carburatori_1000_1987-1993_34.36.PNG)
3 |
GU28935511 - GICLEUR AB 264 Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
GU28935740 - JET MAXIMUM Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
GU66935910 - GICLEUR MINIMUM 50 Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
GU17936067 - JET DEMARRAGE 75 Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
GICLEUR POMPE DE REPRISE 38 ORIGINE PIAGGIO MOTO GUZZI 850 TS 1985>2001, CALIFORNIA 3 1000 1987>1993 -GU28939011- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/3/3/img/66333.jpg)
8 |
POINTEAU ORIGINE PIAGGIO APRILIA 125 RS, TUONO, MX/MOTO-GUZZI 1000 CALIFORNIA, 1000 GT -318604- Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
GU49938900 - TUYAU Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
GU19938880 - ECROU Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
GU53937200 - VIS TENDEUR DE FIL Plus d'informationsQuantité requise : 1 |
||||||
|
16 |
GU14934650 - VIS Plus d'informationsQuantité requise : 1 |
||||||
|
19 |
GU17937167 - RESSORT Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/5/5/img/129155.jpg)
24 |
VIS TENDEUR DE CABLE ORIGINE MOTO GUZZI COMMUN A LA GAMME -GU12937200- Plus d'informationsQuantité requise : 1 |
||||||
|
26 |
GU13937900 - VIS Plus d'informationsQuantité requise : 1 |
||||||
|
27 |
GU17937450 - COUVERCLE SOUPAPE Plus d'informationsQuantité requise : 1 |
||||||
|
29 |
GU13937600 - RESSORT Plus d'informationsQuantité requise : 1 |
||||||
|
30 |
GU13937800 - SOUPAPE DE DEMARRAGE Plus d'informationsQuantité requise : 1 |
||||||
|
32 |
GU65933700 - RONDELLE PLATE Plus d'informationsQuantité requise : 1 |
||||||
|
33 |
GU13936300 - RESSORT Plus d'informationsQuantité requise : 1 |
||||||
|
36 |
GU14931650 - RONDELLE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/5/1/img/65751.jpg)
37 |
RESSORT VIS AIR CARBU ORIGINE PIAGGIO COMMUN A LA GAMME -152608- Plus d'informationsQuantité requise : 1 |
||||||
|
43 |
GU14931050 - MEMBRANE Plus d'informationsQuantité requise : 1 |
||||||
|
46 |
GU14936850 - COUVERCLE Plus d'informationsQuantité requise : 1 |
||||||
|
51 |
GU13932900 - RONDELLE ELASTIQUE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/0/9/img/131909.JPG)
54 |
GU43934000 - FILTRE ESSENCE Plus d'informationsQuantité requise : 1 |
||||||
|
55 |
AP8106794 - PIPETTE RACC. TUYAU ESSENCE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/6/8/img/129168.jpg)
59 |
AXE DE FLOTEUR ORIGINE MOTO GUZZI COMMUN A LA GAMME -GU13933100- Plus d'informationsQuantité requise : 1 |
||||||
|
63 |
GU28939911 - JOINTS DE SERIE CARBURATEUR * Plus d'informationsQuantité requise : 1 |
||||||
|
66 |
GU98610330 - VIS Plus d'informationsQuantité requise : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/0/9/img/129209.jpg)
67 |
MANCHON DE CARBURATEUR ORIGINE PIAGGIO MOTO-GUZZI 850 LE MANS 1981>1984, T5 1985>1988, 1000 CALIFORNIA 1983>1997, SP 1989>1994, STRADA 1993>1994 -GU14114350- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/1/2/img/132612.jpg)
68 |
COLLIER (57X59,5X10) ORIGNE PIAGGIO COMMUN A LA GAMME -GU93305057- Plus d'informationsQuantité requise : 4 |
||||||
|
70 |
GU98326009 - VIS Plus d'informationsQuantité requise : 2 |
||||||
|
71 |
GU95100116 - RONDELLE Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/3/img/73553.jpg)
72 |
RONDELLE PLATE (6,15X11X0,8) ORIGINE PIAGGIO COMMUN A LA GAMME -GU95008206- Plus d'informationsQuantité requise : 6 |
