Eclatés de véhicule - MOTO GUZZI CALIFORNIA 1000 California III Carburatori 1000 1987-1993
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

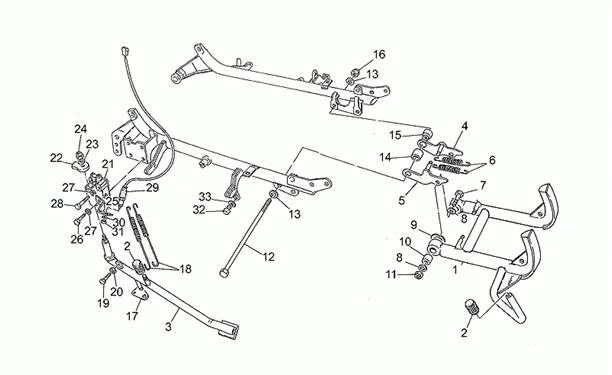

Chassis : 33.40 BEQUILLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/480/California_III_Carburatori_1000_1987-1993_33.40.PNG)
1 |
Béquille centrale |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/6/7/img/129167.jpg)
2 |
CAOUTCHOUC DE PEDALE BEQUILLE ORIGINE PIAGGIO COMMUN A LA GAMME MOTO GUZZI -GU13432640 Plus d'informationsQuantité requise : 2 |
||||||
|
3 |
GU29432050 - SUPPORT Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
GU03432970 - PIASTRA DX Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
GU03433270 - PIASTRA SX Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
GU18434060 - RESSORT Plus d'informationsQuantité requise : 2 |
||||||
|
7 |
GU98052545 - VIS Plus d'informationsQuantité requise : 2 |
||||||
|
8 |
GU95004210 - RONDELLE 10,2X18X2 Plus d'informationsQuantité requise : 2 |
||||||
|
9 |
GU14433400 - RONDELLE ELASTIQUE Plus d'informationsQuantité requise : 2 |
||||||
|
10 |
GU14433500 - DOUILLE G. Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/4/7/img/73547.jpg)
11 |
GU92630110 - ECROU M10X1,5 Plus d'informationsQuantité requise : 2 |
||||||
|
12 |
GU03429600 - PERNO Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
GU95000213 - RONDELLE Plus d'informationsQuantité requise : 2 |
||||||
|
14 |
GU14429800 - ENTRETOISE Plus d'informationsQuantité requise : 2 |
||||||
|
15 |
GU14429900 - ENTRETOISE EXTERNE G. Plus d'informationsQuantité requise : 2 |
||||||
|
16 |
GU92602312 - ECROU Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/1/1/7/img/151117.jpg)
17 |
SUPPORT DE CONTACTEUR DE BEQUILLE LATERALE ORIGINE MOTO GUZZI 1000-1100 CALIFORNIA, V50, V60, V75 -GU18432760 Plus d'informationsQuantité requise : 1 |
||||||
|
18 |
GU14434000 - RESSORT Plus d'informationsQuantité requise : 2 |
||||||
|
19 |
GU98054216 - VIS Plus d'informationsQuantité requise : 1 |
||||||
|
20 |
GU92602205 - ECROU Plus d'informationsQuantité requise : 1 |
||||||
|
21 |
GU13433440 - BLOC Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/5/5/9/img/102559.jpg)
22 |
GU03432740 - FERMO Plus d'informationsQuantité requise : 1 |
||||||
|
23 |
GU95004210 - RONDELLE 10,2X18X2 Plus d'informationsQuantité requise : 1 |
||||||
|
24 |
GU92602210 - ECROU Plus d'informationsQuantité requise : 1 |
||||||
|
25 |
GU29433850 - BRIDE Plus d'informationsQuantité requise : 1 |
||||||
|
26 |
GU98054416 - VIS M8X16 Plus d'informationsQuantité requise : 3 |
||||||
|
27 |
GU95021108 - RONDELLE ELASTIQUE Plus d'informationsQuantité requise : 4 |
||||||
|
28 |
GU98052440 - VIS Plus d'informationsQuantité requise : 1 |
||||||
|
29 |
GU29759150 - INTERRUPTEUR BEQUILLE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/3/2/img/131932.jpg)
30 |
RONDELLE ELASTIQUE (8X15X0.3) ORIGINE PIAGGIO COMMUN A LA GAMME -GU61270300 Plus d'informationsQuantité requise : 1 |
||||||
|
31 |
GU92602508 - ECROU M8X1 Plus d'informationsQuantité requise : 1 |
||||||
|
32 |
GU12433000 - TAMPON Plus d'informationsQuantité requise : 1 |
||||||
|
33 |
GU95000213 - RONDELLE Plus d'informationsQuantité requise : 1 |
