Eclatés de véhicule - MOTO GUZZI CALIFORNIA 1000 California III Carburatori 1000 1987-1993
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

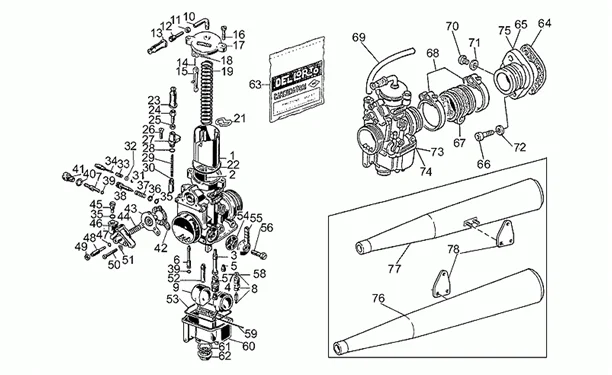

Moteur : 34.37 CARBURATEURS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/480/California_III_Carburatori_1000_1987-1993_34.37.PNG)
1 |
Soupape gaz 60/3 |
||||||
|
2 |
Pointeau conique |
||||||
|
3 |
GU30935510 - GICLEUR AR268 Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
GU28935711 - GICLEUR PRINCIPAL Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
GU66935910 - GICLEUR MINIMUM 50 Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
GICLEUR DE STARTER |
||||||
|
7 |
Jet pompe 33 |
||||||
|
8 |
Vanne pointeau 300 |
||||||
|
9 |
Flotteur |
||||||
|
10 |
GU49938900 - TUYAU Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
GU19938880 - ECROU Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
GU53937200 - VIS TENDEUR DE FIL Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
RESSORT |
||||||
|
16 |
GU14934650 - VIS Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/5/5/img/129155.jpg)
24 |
VIS TENDEUR DE CABLE ORIGINE MOTO GUZZI COMMUN A LA GAMME -GU12937200 Plus d'informationsQuantité requise : 1 |
||||||
|
25 |
|
||||||
|
26 |
GU13937900 - VIS Plus d'informationsQuantité requise : 1 |
||||||
|
27 |
GU17937450 - COUVERCLE SOUPAPE Plus d'informationsQuantité requise : 1 |
||||||
|
29 |
GU13937600 - RESSORT Plus d'informationsQuantité requise : 1 |
||||||
|
30 |
GU13937800 - SOUPAPE DE DEMARRAGE Plus d'informationsQuantité requise : 1 |
||||||
|
32 |
GU65933700 - RONDELLE PLATE Plus d'informationsQuantité requise : 1 |
||||||
|
33 |
GU13936300 - RESSORT Plus d'informationsQuantité requise : 1 |
||||||
|
34 |
Vis |
||||||
|
36 |
GU14931650 - RONDELLE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/5/1/img/65751.jpg)
37 |
RESSORT VIS AIR CARBU ORIGINE PIAGGIO COMMUN A LA GAMME -152608- Plus d'informationsQuantité requise : 1 |
||||||
|
38 |
Vis réglage soupape gaz |
||||||
|
43 |
GU14931050 - MEMBRANE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/3/0/7/img/129307.jpg)
44 |
RESSORT DE CARBURATEUR MOTO GUZZI -GU14936950 Plus d'informationsQuantité requise : 1 |
||||||
|
46 |
GU14936850 - COUVERCLE Plus d'informationsQuantité requise : 1 |
||||||
|
48 |
|
||||||
|
49 |
ECROU |
||||||
|
51 |
GU13932900 - RONDELLE ELASTIQUE Plus d'informationsQuantité requise : 1 |
||||||
|
52 |
SOUPAPE D AMMISSION |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/0/9/img/131909.jpg)
54 |
GU43934000 - FILTRE ESSENCE Plus d'informationsQuantité requise : 1 |
||||||
|
55 |
AP8106794 - PIPETTE RACC. TUYAU ESSENCE Plus d'informationsQuantité requise : 1 |
||||||
|
56 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/6/8/img/129168.jpg)
59 |
AXE DE FLOTEUR ORIGINE MOTO GUZZI COMMUN A LA GAMME -GU13933100 Plus d'informationsQuantité requise : 1 |
||||||
|
63 |
GU28939911 - JOINTS DE SERIE CARBURATEUR * Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/5/5/9/2/img/125592.jpg)
64 |
JOINT PIPE ADMISSION ORIGINE MOTO GUZZI 1000-1100 CALIFORNIA, LE MANS, SPORT, GT, SP 2005< -GU28115560- Plus d'informationsQuantité requise : 2 |
||||||
|
65 |
Pipe d. |
||||||
|
66 |
GU98622325 - VIS M6X25 Plus d'informationsQuantité requise : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/2/0/9/img/129209.jpg)
67 |
MANCHON DE CARBURATEUR ORIGINE PIAGGIO MOTO-GUZZI 850 LE MANS 1981>1984, T5 1985>1988, 1000 CALIFORNIA 1983>1997, SP 1989>1994, STRADA 1993>1994 -GU14114350 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/1/2/img/132612.jpg)
68 |
COLLIER (57X59,5X10) ORIGNE PIAGGIO COMMUN A LA GAMME -GU93305057 Plus d'informationsQuantité requise : 4 |
||||||
|
69 |
TUYAUAERATION HUILE |
||||||
|
70 |
GU98326009 - VIS Plus d'informationsQuantité requise : 2 |
||||||
|
71 |
GU95100116 - RONDELLE Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/3/img/73553.jpg)
72 |
RONDELLE PLATE (6,15X11X0,8) ORIGINE PIAGGIO COMMUN A LA GAMME -GU95008206- Plus d'informationsQuantité requise : 6 |
||||||
|
73 |
Carburateur droit |
||||||
|
74 |
Carburateur gauche |
||||||
|
75 |
Pipe g. |
||||||
|
76 |
SILENCIEUX |
||||||
|
77 |
SILENCIEUX |
||||||
|
78 |
PLAQUE |
