Eclatés de véhicule - MOTO GUZZI CALIFORNIA 1000 California III Carburatori 1000 1987-1993
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

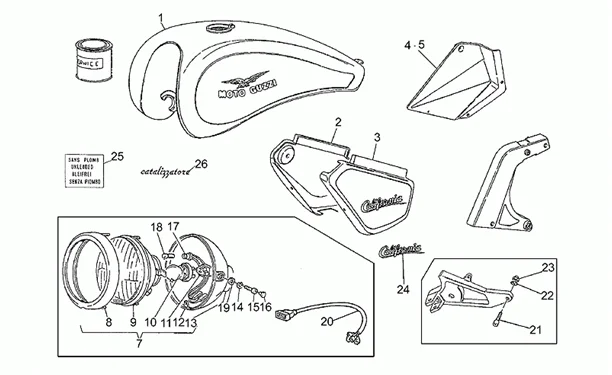

Chassis : 33.03 CARROSS.-VARIANTE CLASSIC
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/480/California_III_Carburatori_1000_1987-1993_33.03.PNG)
7 |
GU28740533 - FEU AVANT Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
GU19740454 - CADRE PHARE Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
GU18740435 - GROUPE OPTIQUE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/6/img/66256.jpg)
10 |
AMPOULE/LAMPE 12V 60/55W H4 ORIGINE PIAGGIO COMMUN A LA GAMME -292723- Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
GU14756255 - CONNECTEUR Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
GU23740418 - CALOTTE DE PHARE Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
GU19740404 - COUVERCLE Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
GU95004210 - RONDELLE 10,2X18X2 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/4/2/img/133142.jpg)
15 |
VIS BTR (10X25) ORIGINE PIAGGIO COMMUN A LA GAMME -GU98622525- Plus d'informationsQuantité requise : 2 |
||||||
|
16 |
GU23943510 - BOUCHON Plus d'informationsQuantité requise : 2 |
||||||
|
17 |
GU17740405 - PORTE AMPOULE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/5/9/img/65759.jpg)
18 |
AMPOULE/LAMPE 12V 4W BA9S ORIGINE PIAGGIO COMMUN A LA GAMME -163015- Plus d'informationsQuantité requise : 1 |
||||||
|
19 |
GU91181005 - ENTRETOISE Plus d'informationsQuantité requise : 2 |
||||||
|
20 |
GU19747105 - RALLONGE GR.CABLE Plus d'informationsQuantité requise : 1 |
||||||
|
22 |
GU95000208 - RONDELLE Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/6/1/img/132561.jpg)
23 |
ECROU BORGNE (D8) ORIGINE PIAGGIO COMMUN A LA GAMME -GU92781081- Plus d'informationsQuantité requise : 2 |
||||||
|
24 |
GU29922035 - DECALCOMANIE D Plus d'informationsQuantité requise : 2 |
||||||
|
25 |
GU29995735 - DECALCOMANIE Plus d'informationsQuantité requise : 1 |
