Eclatés de véhicule - MOTO GUZZI CALIFORNIA 1100 1994-1997
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

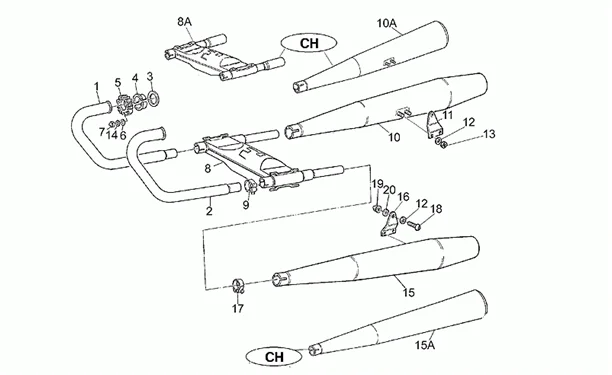

Chassis : 33.44 GROUPE ECHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/469/California_1100_1994-1997_33.44.PNG)
1 |
Tuyau échappement d. |
||||||
|
2 |
Tuyau échappement gche |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/5/5/0/1/img/125501.jpg)
3 |
JOINT ECHAPPEMENT SORTIE CULASSE ORIGINE PIAGGIO COMMUN A LA GAMME MOTO-GUZZI -GU90718370 Plus d'informationsQuantité requise : 2 |
||||||
|
4 |
GU14121200 - ENTRETOISE Plus d'informationsQuantité requise : 2 |
||||||
|
5 |
Bride |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
6 |
RONDELLE (8,4X13X0,8) ORIGINE PIAGGIO COMMUN A LA GAMME -GU14615901 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/6/1/img/132561.jpg)
7 |
ECROU BORGNE (D8) ORIGINE PIAGGIO COMMUN A LA GAMME -GU92781081 Plus d'informationsQuantité requise : 4 |
||||||
|
8 |
CHAMBRE DE DETENDE |
||||||
|
8 |
Chambre de détente C295 |
||||||
|
9 |
GU30123430 - COLLIER Plus d'informationsQuantité requise : 2 |
||||||
|
10 |
GU17123062 - SILENCIEUX D S17 Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
Silencieux D |
||||||
|
11 |
PLAQUE |
||||||
|
12 |
GU95004208 - RONDELLE Plus d'informationsQuantité requise : 4 |
||||||
|
13 |
GU92630508 - ECROU Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/7/8/img/132678.jpg)
14 |
RONDELLE PLATE (8.5X14X1.5) ORIGINE PIAGGIO COMMUN A LA GAMME -GU95007208 Plus d'informationsQuantité requise : 4 |
||||||
|
15 |
SILENCIEUX |
||||||
|
15 |
GU30122960 - SILENCIEUX G Plus d'informationsQuantité requise : 1 |
||||||
|
16 |
Plaque |
||||||
|
17 |
GU29123450 - COLLIER Plus d'informationsQuantité requise : 2 |
||||||
|
18 |
GU98230835 - VIS M8X35 Plus d'informationsQuantité requise : 2 |
||||||
|
18 |
GU98230841 - VIS M8X40 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/3/8/img/132538.jpg)
19 |
ECROU BRIDE AUTOBLOQUANT/NYLSTOP (M8) ORIGINE PIAGGIO COMMUN A LA GAMME -GU92660208 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/3/2/img/131932.jpg)
20 |
RONDELLE ELASTIQUE (8X15X0.3) ORIGINE PIAGGIO COMMUN A LA GAMME -GU61270300 Plus d'informationsQuantité requise : 2 |
