Eclatés de véhicule - MOTO GUZZI CALIFORNIA 1100 1994-1997
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

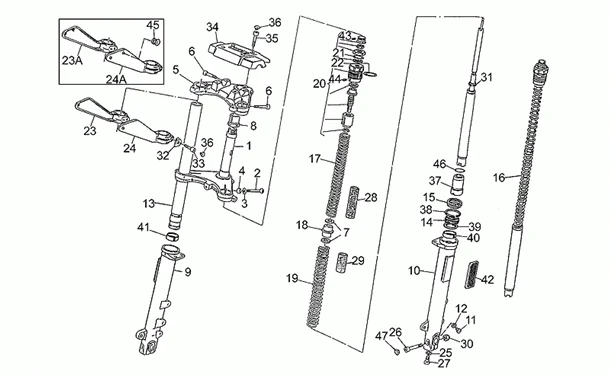

Chassis : 33.12 FOURCHE AV.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/469/California_1100_1994-1997_33.12.PNG)
1 |
|
||||||
|
2 |
GU98620560 - VIS M10X60 Plus d'informationsQuantité requise : 2 |
||||||
|
3 |
GU95004210 - RONDELLE 10,2X18X2 Plus d'informationsQuantité requise : 2 |
||||||
|
4 |
Entretoise |
||||||
|
5 |
T.DE FOURCHE |
||||||
|
6 |
GU98620540 - VIS M10X40 Plus d'informationsQuantité requise : 3 |
||||||
|
7 |
GU95004217 - RONDELLE 17X27X2 Plus d'informationsQuantité requise : 4 |
||||||
|
8 |
GU18516660 - DOUILLE ET PIGNON Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
|
||||||
|
10 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/7/9/img/133179.jpg)
11 |
VIS BTR (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -GU98682316 Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
GU95100116 - RONDELLE Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
GU30525461 - TIGE Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
Bague d'étanchéité |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/4/1/2/img/130412.jpg)
15 |
PARE-POUSSIERE FOURCHE ORIGINE PIAGGIO COMMUN A LA GAMME MOTO GUZZI -GU29524550 Plus d'informationsQuantité requise : 1 |
||||||
|
16 |
GU29525360 - AMORTISSEUR AV Plus d'informationsQuantité requise : 1 |
||||||
|
17 |
RESSORT |
||||||
|
18 |
GU29527960 - DOUILLE Plus d'informationsQuantité requise : 1 |
||||||
|
19 |
|
||||||
|
20 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/2/8/img/132228.jpg)
21 |
JOINT TORIQUE (23,52X1,78) EMBRAYAGE ORIGINE MOTO GUZZI COMMUN A LA GAMME -GU90706235 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/3/3/img/132233.jpg)
22 |
BAGUE/JOINT ETANCHEITE BOUCHON REMPLISSAGE HUILE (D32) ORIGINE MOTO GUZZI COMMUN A LA GAMME -GU90706282 Plus d'informationsQuantité requise : 1 |
||||||
|
23 |
|
||||||
|
23 |
Support phare D |
||||||
|
24 |
|
||||||
|
24 |
Support phare G |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/0/9/7/img/129097.jpg)
25 |
JOINT BOUCHON DE VIDANGE ORIGINE PIAGGIO POUR MOTO-GUZZI 850 CALIFORNIA 1985>, 1100 CALIFORNIA 1994>, 750 V7 2008>, NEVADA 2012>, V9 2016>, V11 2001>, V100 -GU10528900 Plus d'informationsQuantité requise : 1 |
||||||
|
26 |
GU98820545 - VIS Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/4/2/img/133142.jpg)
27 |
VIS BTR (10X25) ORIGINE PIAGGIO COMMUN A LA GAMME -GU98622525 Plus d'informationsQuantité requise : 1 |
||||||
|
28 |
GU29526360 - TUYAU ANTI-FROTTEMENT SUP. Plus d'informationsQuantité requise : 1 |
||||||
|
29 |
Tuyau anti-frottement inf. |
||||||
|
30 |
GU92602210 - ECROU Plus d'informationsQuantité requise : 1 |
||||||
|
31 |
RONDELLE |
||||||
|
32 |
GU23497910 - ENTRETOISE Plus d'informationsQuantité requise : 1 |
||||||
|
33 |
GU98622425 - VIS M8X25 Plus d'informationsQuantité requise : 1 |
||||||
|
34 |
GU23500210 - PLAQUE FIXATION GUIDON Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/5/9/img/133159.jpg)
35 |
VIS BTR (8X35) ORIGINE PIAGGIO COMMUN A LA GAMME -GU98680435 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/9/4/7/img/129947.jpg)
36 |
BOUCHON COLONNE DE DIRECTION ORIGINE PIAGGIO MOTO GUZZI BELLAGIO 940 2007>2013, BREVA 750 2003>2009, CALIFORNIA 1994>2012, NEVADA 1992>2013 -GU23943410 Plus d'informationsQuantité requise : 1 |
||||||
|
37 |
GU28527633 - TAMPON Plus d'informationsQuantité requise : 1 |
||||||
|
38 |
AP8123199 - BAGUE DE BUTEE Plus d'informationsQuantité requise : 1 |
||||||
|
39 |
GU30528161 - ENTRETOISE Plus d'informationsQuantité requise : 1 |
||||||
|
40 |
599505 - MOYEU Plus d'informationsQuantité requise : 1 |
||||||
|
41 |
599629 - MOYEU Plus d'informationsQuantité requise : 1 |
||||||
|
42 |
GU31781665 - CATADIOPTRE, AMBRE Plus d'informationsQuantité requise : 1 |
||||||
|
43 |
|
||||||
|
44 |
Goujon |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/7/2/img/132572.jpg)
45 |
BOUCHON 15 MM ORIGINE MOTO GUZZI COMMUN A LA GAMME -GU93180111 Plus d'informationsQuantité requise : 1 |
||||||
|
46 |
GU90706298 - JOINT TORIQUE Plus d'informationsQuantité requise : 1 |
||||||
|
47 |
GU23943510 - BOUCHON Plus d'informationsQuantité requise : 1 |
