Eclatés de véhicule - MOTO GUZZI CALIFORNIA 1100 1994-1997
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

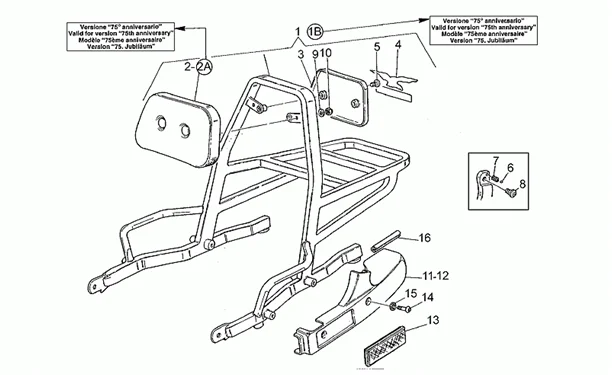

Chassis : 33.24 PORTE-BAGAGES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/469/California_1100_1994-1997_33.24.PNG)
1 |
|
||||||
|
1 |
PORTE-BAGAGES -GU30466562- Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
Porte-bagages fixe cpl. |
||||||
|
2 |
Coussin cuir Waterproof |
||||||
|
2 |
GU03468000 - CUSCINO POGGIASCHIENA Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
GU03468200 - COPERCHIO Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
"Décalco ""Moto Guzzi""" |
||||||
|
4 |
"Décalco ""Moto Guzzi""" |
||||||
|
5 |
GU98230619 - VIS Plus d'informationsQuantité requise : 2 |
||||||
|
6 |
GU92295704 - BILLE Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
GU94321007 - RESSORT Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
GU03468100 - VITE IX M8X1,25 Plus d'informationsQuantité requise : 2 |
||||||
|
9 |
GU95001206 - RONDELLE Plus d'informationsQuantité requise : 2 |
||||||
|
10 |
GU92601206 - ECROU Plus d'informationsQuantité requise : 2 |
||||||
|
11 |
GU30466961 - PROTECT.DTE Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
GU30467361 - PROTECT.GCHE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/3/3/0/img/131330.jpg)
13 |
CATADIOPTRE ARRIERE ORIGINE PIAGGIO MOTO-GUZZI 1100 V11 -GU31781565 Plus d'informationsQuantité requise : 2 |
||||||
|
13 |
GU31781665 - CATADIOPTRE, AMBRE Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/0/5/7/img/133057.jpg)
14 |
VIS BTR TETE BOMBEE (6X14) ORIGINE PIAGGIO COMMUN A LA GAMME -GU98370614 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/2/4/img/131924.jpg)
15 |
RONDELLE RESSORT (6.7X11.8X0.4) ORIGINE PIAGGIO COMMUN A LA GAMME -GU61013800 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/3/3/4/img/101334.jpg)
16 |
JOINT PVC ORIGINE MOTO GUZZI COMMUN A LA GAMME -GU00823931080 Plus d'informationsQuantité requise : 1 |
