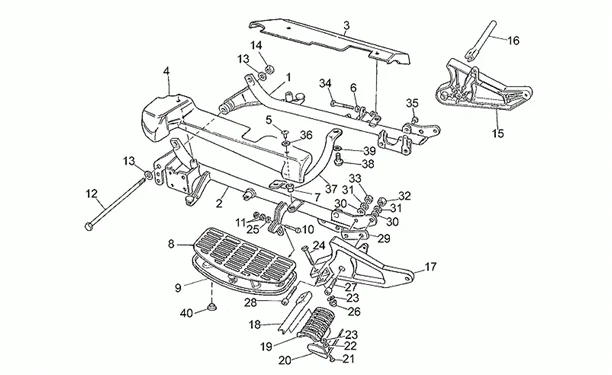

Chassis : 33.21 REPOSE-PIEDS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/469/California_1100_1994-1997_33.21.PNG)
1 |
Trav.comm.bras berceau D |
||||||
|
2 |
|
||||||
|
3 |
GU30446960 - ENJOLIVEUR D Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
GU30447460 - ENJOLIVEUR G Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
GU98230620 - VIS Plus d'informationsQuantité requise : 5 |
||||||
|
6 |
GU92602206 - ECROU Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/9/3/img/132593.jpg)
7 |
GU93231606 - DOUILLE ANTI VIBRATION M6 Plus d'informationsQuantité requise : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/6/4/5/img/102645.jpg)
8 |
TAPIS DE REPOSE PIED GAUCHE OU DROIT ORIGINE PIAGGIO MOTO-GUZZI 1400 CALIFORNIA 2012>, ELDORADO 2015, 1100 CALIFORNIA 1997>2012 -GU03447070 Plus d'informationsQuantité requise : 2 |
||||||
|
9 |
GU03443555 - PIANALE POGGIAPIEDI Plus d'informationsQuantité requise : 2 |
||||||
|
10 |
GU98052435 - VIS M8X35 Plus d'informationsQuantité requise : 4 |
||||||
|
10 |
GU98107035 - VIS Plus d'informationsQuantité requise : 4 |
||||||
|
11 |
GU92630108 - ECROU Plus d'informationsQuantité requise : 4 |
||||||
|
11 |
Ecrou |
||||||
|
12 |
GU03429500 - PERNO Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
GU95000213 - RONDELLE Plus d'informationsQuantité requise : 2 |
||||||
|
14 |
GU92602312 - ECROU Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
GU294435509 - PLAQUE * Plus d'informationsQuantité requise : 1 |
||||||
|
16 |
GU23440710 - TUYAU REP.-PIEDS AV.D. Plus d'informationsQuantité requise : 1 |
||||||
|
17 |
GU294460509 - PLAQUE GAU. Plus d'informationsQuantité requise : 1 |
||||||
|
18 |
GU23441810 - TUYAU REP.-PIEDS AV.G. Plus d'informationsQuantité requise : 1 |
||||||
|
19 |
GU23443210 - PEDALE EN CAOUTCH * Plus d'informationsQuantité requise : 2 |
||||||
|
20 |
GU23441210 - PLAQUE * Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/2/7/img/132927.jpg)
21 |
VIS TH (6X14) ORIGINE PIAGGIO COMMUN A LA GAMME -GU98084314 Plus d'informationsQuantité requise : 2 |
||||||
|
22 |
GU95129130 - RONDELLE ELASTIQUE Plus d'informationsQuantité requise : 2 |
||||||
|
23 |
GU91180602 - ENTRETOISE Plus d'informationsQuantité requise : 2 |
||||||
|
24 |
GU29442250 - VIS Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/3/2/img/131932.jpg)
25 |
RONDELLE ELASTIQUE (8X15X0.3) ORIGINE PIAGGIO COMMUN A LA GAMME -GU61270300 Plus d'informationsQuantité requise : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/6/1/img/132561.jpg)
26 |
ECROU BORGNE (D8) ORIGINE PIAGGIO COMMUN A LA GAMME -GU92781081 Plus d'informationsQuantité requise : 2 |
||||||
|
27 |
Vis M12X35 |
||||||
|
28 |
GU98621650 - VIS M12X50 Plus d'informationsQuantité requise : 2 |
||||||
|
29 |
GU17444250 - PLAQUETTE Plus d'informationsQuantité requise : 2 |
||||||
|
30 |
GU95100414 - RONDELLE Plus d'informationsQuantité requise : 4 |
||||||
|
31 |
GU95022112 - RONDELLE EVENT. Plus d'informationsQuantité requise : 4 |
||||||
|
32 |
GU92602512 - ECROU BAS M12X1,25 Plus d'informationsQuantité requise : 1 |
||||||
|
33 |
GU92602312 - ECROU Plus d'informationsQuantité requise : 3 |
||||||
|
34 |
VIS |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/7/8/img/132578.jpg)
35 |
BOUCHON OBTURATEUR ORINE MOTO GUZZI COMMUN A LA GAMME -GU93180245 Plus d'informationsQuantité requise : 1 |
||||||
|
36 |
GU95001206 - RONDELLE Plus d'informationsQuantité requise : 5 |
||||||
|
37 |
GU30425260 - TRAVERSE COMM.BRAS DUBERCEAU Plus d'informationsQuantité requise : 1 |
||||||
|
38 |
GU98231022 - VIS Plus d'informationsQuantité requise : 2 |
||||||
|
39 |
GU95022110 - RONDELLE EVENT. Plus d'informationsQuantité requise : 2 |
||||||
|
40 |
GU29447150 - TAMPON Plus d'informationsQuantité requise : 4 |
