Eclatés de véhicule - MOTO GUZZI CALIFORNIA 1100 1994-1997
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

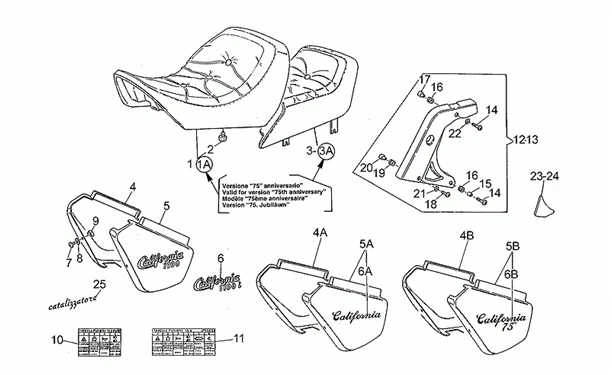

Chassis : 33.27 SELLE-CARROSSERIE CENT.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/469/California_1100_1994-1997_33.27.PNG)
1 |
|
||||||
|
1 |
GU30460576 - SELLE PILOTE WATERPROOF Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
GU29461650 - CAOUTCHOUC Plus d'informationsQuantité requise : 4 |
||||||
|
3 |
|
||||||
|
3 |
Selle passager |
||||||
|
4 |
COUVERCLE BATTERIE |
||||||
|
4 |
GU30476261 - AILE D Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
GU30476262 - AILE D Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
Aile D |
||||||
|
4 |
Aile D |
||||||
|
4 |
COUVERCLE BATTERIE |
||||||
|
4 |
GU30476279 - AILE D Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
COUVERCLE BATTERIE |
||||||
|
4 |
GU89000082 - AILE D Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
COUVERCLE BATTERIE |
||||||
|
4 |
GU89000120 - AILE D Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
|
||||||
|
5 |
|
||||||
|
5 |
|
||||||
|
5 |
COUVERCLE BATTERIE |
||||||
|
5 |
Aile G |
||||||
|
5 |
COUVERCLE BATTERIE |
||||||
|
5 |
GU30476369 - COUVERCLE BATTERIE Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
Aile G |
||||||
|
5 |
Aile G |
||||||
|
5 |
Aile G |
||||||
|
5 |
Aile G |
||||||
|
6 |
|
||||||
|
6 |
|
||||||
|
6 |
"Décalco ""California""" |
||||||
|
6 |
"Décalco ""California 1100 I""" |
||||||
|
6 |
"Décalco ""California 1100 I""" |
||||||
|
6 |
"Décalco ""California 75""" |
||||||
|
7 |
GU98326016 - VIS Plus d'informationsQuantité requise : 4 |
||||||
|
8 |
GU66478610 - RONDELLE NYLON 6X17X1 Plus d'informationsQuantité requise : 6 |
||||||
|
9 |
GU92660601 - ECROU EN CAGE Plus d'informationsQuantité requise : 4 |
||||||
|
10 |
GU30945460 - DECAL TABELLE FUSIBLES Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
GU30945470 - DECAL TABELLE FUSIBLES Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
|
||||||
|
13 |
|
||||||
|
14 |
GU98230835 - VIS M8X35 Plus d'informationsQuantité requise : 2 |
||||||
|
14 |
GU98230841 - VIS M8X40 Plus d'informationsQuantité requise : 2 |
||||||
|
15 |
GU29436450 - DOUILLE Plus d'informationsQuantité requise : 1 |
||||||
|
16 |
GU91551010 - CAOUTCHOUC Plus d'informationsQuantité requise : 2 |
||||||
|
17 |
Entretoise supérieur |
||||||
|
18 |
GU98230626 - VIS 6X25 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/6/1/img/132361.jpg)
19 |
CAOUTCHOUC PASSE FIL (8X18) ORIGINE PIAGGIO COMMUN A LA GAMME -GU91551086 Plus d'informationsQuantité requise : 1 |
||||||
|
20 |
GU29459336 - ENTRETOISE Plus d'informationsQuantité requise : 1 |
||||||
|
21 |
GU95100123 - RONDELLE Plus d'informationsQuantité requise : 1 |
||||||
|
22 |
GU95100218 - RONDELLE Plus d'informationsQuantité requise : 1 |
||||||
|
23 |
GU29924335 - DECALCO FLANC D Plus d'informationsQuantité requise : 1 |
||||||
|
24 |
GU29924435 - DECALCO FLANC G Plus d'informationsQuantité requise : 1 |
||||||
|
25 |
DECALCOMANIE D |
