Eclatés de véhicule - MOTO GUZZI AUDACE 1400 1400 2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

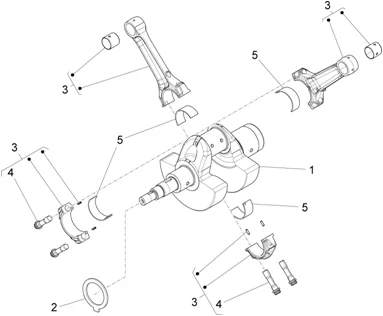

Moteur : 03.160 ARBRE MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/462/Audace_1400_2015_03.160.PNG)
1 |
8868555001 - ALBERO MOTORE CPL. CAT.MARRONE X RIC. Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
8868555002 - ALBERO MOTORE CPL. CAT.VERDE X RIC. Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
8868555003 - ALBERO MOTORE CPL. CAT.NERO X RIC. Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
874293 - RONDELLA RAS ALB MOTORE Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
2A0005920V - BIELLE Plus d'informationsQuantité requise : 2 |
||||||
|
3 |
2A000592OM - BIELLE Plus d'informationsQuantité requise : 2 |
||||||
|
3 |
8783390003 - BIELLA COMPLETA L=151(CAT.NERO) Plus d'informationsQuantité requise : 2 |
||||||
|
3 |
8783390002 - BIELLA COMPLETA L=151(CAT.VERDE) Plus d'informationsQuantité requise : 2 |
||||||
|
3 |
8783390001 - BIELLA COMPLETA L=151(CAT.MARRONE) Plus d'informationsQuantité requise : 2 |
||||||
|
3 |
2A0005920N - BIELLE Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/9/4/img/69594.jpg)
4 |
VIS DE BIELLE ORIGINE PIAGGIO COMMUN A LA GAMME MOTO APRILIA/MOTO-GUZZI -849131- Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/3/7/9/img/98379.jpg)
5 |
COUSSINET DE BIELLE REPERE ROUGE ORIGINE PIAGGIO MOTO-GUZZI 1200 GRISO, NORGE, STELVIO, SPORT, 1400 CALIFORNIA -875243- Plus d'informationsQuantité requise : 2 |
||||||
|
5 |
875244 - SEMICUSCINETTO DI BIELLA Plus d'informationsQuantité requise : 2 |
