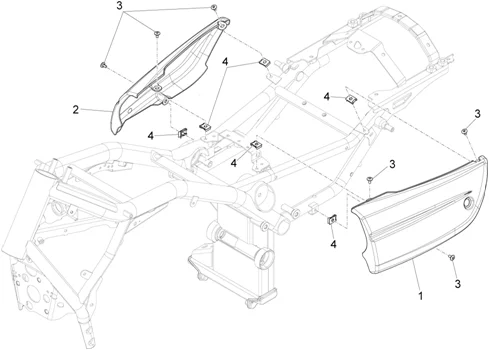

Carrosserie : 02.100 CARROSSERIE CENTRALE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/462/Audace_1400_2015_02.100.PNG)
1 |
2B001787 - FLANC GAUCHE Plus d'informationsQuantité requise : 1 |
|||||||||
|
1 |
2H000689000NI - AILE G Plus d'informationsQuantité requise : 1 |
|||||||||
|
2 |
2B001786 - FLANC DROITE Plus d'informationsQuantité requise : 1 |
|||||||||
|
2 |
2H000688000NI - AILE D Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
3 |
VIS BTR TETE BOMBEE (5X9) ORIGINE PIAGGIO COMMUN A LA GAMME MOTO -AP8152339- Plus d'informationsQuantité requise : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/9/8/img/65998.jpg)
4 |
ECROU TOLE (M5) ORIGINE PIAGGIO COMMUN A LA GAMME -248419- Plus d'informationsQuantité requise : 6 |
|||||||||
