Eclatés de véhicule - MOTO GUZZI AUDACE 1400 1400 2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

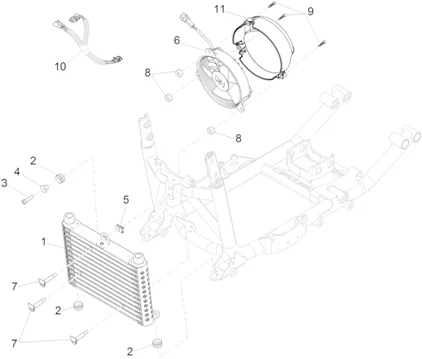

Installation refroidissement : 10.010 RADIATEUR HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/462/Audace_1400_2015_10.010.PNG)
1 |
2B000889 - RADIATEUR HUILE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.JPG)
2 |
CAOUTCHOUC/ENTRETOISE ORIGINE PIAGGIO COMMUN A LA GAMME -AP8120030- Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
3 |
VIS BRIDE TH (6X25) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152280- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/4/img/72294.jpg)
4 |
DOUILLE EN T (DIAMETRE INTERIEUR 6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8221023- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
5 |
ECROU TOLE (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -254485- Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
886235 - ELETTROVENTOLA COMPLETA Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/6/6/img/71466.jpg)
7 |
TIGE ORIGINE PIAGGIO COMMUN A LA GAMME -AP8121464- Plus d'informationsQuantité requise : 3 |
||||||
|
8 |
AP8161083 - DISTANZIALE Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/5/9/img/66559.jpg)
9 |
VIS CRUCIFORME (4X30) TARAUD ORIGINE PIAGGIO COMMUN A LA GAMME -478533- Plus d'informationsQuantité requise : 3 |
||||||
|
10 |
B063434 - CABLAGGIO ELETTROVENTOLA Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
B064009 - CUFFIA VENTILATORE Plus d'informationsQuantité requise : 1 |
