Eclatés de véhicule - MOTO GUZZI AUDACE 1400 1400 2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

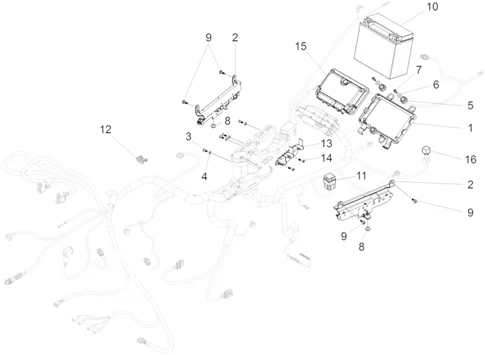

Dispositifs électriques : 11.030 CIRCUIT ELECTRIQUE ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/462/Audace_1400_2015_11.030.PNG)
1 |
858882 - SUPPORT CENTRALE Plus d'informationsQuantité requise : 1 |
|||||||||
|
2 |
B063013 - SUPPORTO RELAY Plus d'informationsQuantité requise : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/7/img/71897.jpg)
3 |
VIS CRUCIFORME (5X15) TARAUD ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150509- Plus d'informationsQuantité requise : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/5/img/71895.jpg)
4 |
RONDELLE PLATE (4.3X12X1) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150501- Plus d'informationsQuantité requise : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/1/img/72271.jpg)
5 |
CAOUTCHOUC SILENBLOC ORIGINE APRILIA/MOTO GUZZI COMMUN A LA GAMME -AP8220150- Plus d'informationsQuantité requise : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/3/img/71873.jpg)
6 |
RONDELLE PLATE (5,5X15X1,2) ORIGINE PIAGGIO COMMUN A LA GAMME Plus d'informationsQuantité requise : 3 |
|||||||||
|
7 |
VIS CRUCIFORME (5X15) TARAUD ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150509- Plus d'informationsQuantité requise : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/7/6/img/71276.jpg)
8 |
CAOUTCHOUC ORIGINE PIAGGIO COMMUN A LA GAMME -AP8112600- Plus d'informationsQuantité requise : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/1/img/71961.jpg)
9 |
VIS BTR DE CARENAGE (5X12) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152302- Plus d'informationsQuantité requise : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/4/9/img/70749.jpg)
10 |
BATTERIE 12V 20AH YT20-BS ORIGINE PIAGGIO COMMUN A LA GAMME MOTO-GUZZI -883818- Plus d'informationsQuantité requise : 1 |
|||||||||
|
11 |
896715 - CAOUTCHOUC Plus d'informationsQuantité requise : 1 |
|||||||||
|
12 |
896675 - SUPPORT Plus d'informationsQuantité requise : 2 |
|||||||||
|
13 |
B063806 - SUPPORTO FUSIBILI Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/0/img/71970.jpg)
14 |
VIS PARKER (5X20) CRUCIFORME ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152329- Plus d'informationsQuantité requise : 2 |
|||||||||
|
15 |
CM267201 - CENTRALE ELECT. Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/2/7/img/70827.jpg)
16 |
RELAIS INJECTION ORIGINE PIAGGIO COMMUN A LA GAMME MOTO APRILIA ET MOTO-GUZZI -895481- Plus d'informationsQuantité requise : 1 |
|||||||||
