Eclatés de véhicule - MOTO GUZZI AUDACE 1400 1400 2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

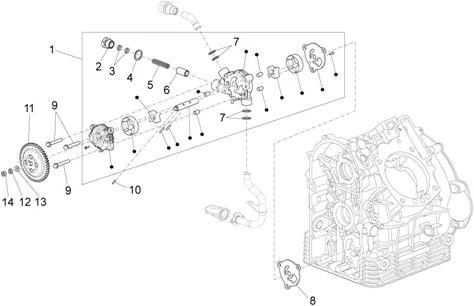

Moteur : 03.200 POMPE HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/462/Audace_1400_2015_03.200.PNG)
1 |
8746505 - GRUPPO POMPE OLIO CPL. X RIC * Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
GU31159050 - BOUCHON Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/6/1/6/3/img/126163.jpg)
3 |
ENTRETOISE (6.5X11.5X3) ORIGINE PIAGGIO COMMUN A LA GAMME -GU30158900- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/6/1/6/4/img/126164.jpg)
4 |
RONDELLE CUIVRE (18.25X24X1) ORIGINE MOTO GUZZI COMMUN A LA GAMME -GU18144350- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/4/8/img/68848.jpg)
5 |
RESSORT ORIGINE PIAGGIO COMMUN A LA GAMME -829486- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/6/4/img/68864.JPG)
6 |
VALVE DE PRESSION HUILE ORIGINE PIAGGIO COMMUN A LA GAMME -829661- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/7/7/img/65977.jpg)
7 |
JOINT TORIQUE (15X17X1.5) ORIGINE PIAGGIO COMMUN A LA GAMME -237553- Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/3/5/9/img/98359.jpg)
8 |
874482 - GUARNIZIONE COPERCHIO POMPA OLIO Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/6/9/img/72769.jpg)
9 |
VIS BRIDE TH (6X45) ORIGINE PIAGGIO COMMUN A LA GAMME -B017632- Plus d'informationsDescription : COMMUN A LA GAMME Quantité requise : 3 |
||||||
|
10 |
874801 - RULLINO Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
877101 - INGRANAGGIO CONDOTTO POMPA OLIO * Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/3/7/6/img/102376.jpg)
12 |
RONDELLE ELASTIQUE (6.4X12) ORIGINE PIAGGIO COMMUN A LA GAMME -GU03013800- Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
GU95005306 - RONDELLE 6,4X13X1,5 Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
873906 - ECROU Plus d'informationsQuantité requise : 1 |
