Vehicle Exploded View - VESPA VESPA SPRINT 50 4T 4V 2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

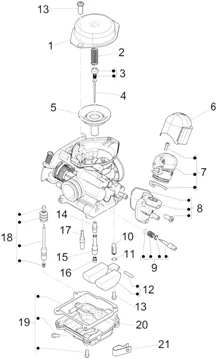

Moteur : 01.40 COMPOSANTS DE CARBURATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/231/Vespa_Sprint_50_4T_4V_2014_01.40.PNG)
1 |
876821 - COUVERCLE SOUPAPE More informationQuantity required : 1 |
||||||
|
2 |
876819 - RESSORT DE GAZ More informationQuantity required : 1 |
||||||
|
3 |
876820 - JOINT POUR POINTEAU CON. More informationQuantity required : 1 |
||||||
|
4 |
CM140212 - POINTEAU CON. More informationQuantity required : 1 |
||||||
|
5 |
CM160802 - PISTON MEMBRANE More informationQuantity required : 1 |
||||||
|
6 |
CHOKE CAP "PIAGGIO GENUINE PART" COMMUN A LA GAMME MAXISCOOTER -828844- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/2/1/0/img/73210.JPG)
7 |
CM142914 - DISPOSITIF STARTER More informationQuantity required : 1 |
||||||
|
8 |
876826 - KIT CORPS STARTER More informationQuantity required : 1 |
||||||
|
9 |
CM160101 - VIS REG.MINIMUN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/2/4/8/img/73248.jpg)
10 |
CARB FLOAT NEEDLE VALVE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 4 STROKE ET MAXISCOOTER 125 CC -CM147102- More informationQuantity required : 1 |
||||||
|
11 |
841622 - RESSORT More informationQuantity required : 1 |
||||||
|
12 |
876822 - FLOTTEUR More informationQuantity required : 1 |
||||||
|
13 |
841623 - VIS More informationQuantity required : 3 |
||||||
|
14 |
828825 - EMULSEUR More informationQuantity required : 1 |
||||||
|
15 |
CM160201 - GIGLEUR MAX More informationQuantity required : 1 |
||||||
|
16 |
CM142101 - GICLEUR MAXI More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/9/3/img/73193.jpg)
17 |
IDLE JET "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 4 STROKE -CM142302- More informationQuantity required : 1 |
||||||
|
18 |
876823 - KIT PIVOT POMPE ACC. More informationQuantity required : 1 |
||||||
|
19 |
CARB FLOAT CHAMBER "PIAGGIO GENUINE PART" 50 FLY 2011>2017, TYPHOON 4 STROKE 2010>/ APRILIA 50 SR MOTARD 4 STROKE 2010> / VESPA 50 LX, PRIMAVERA, S, SPRINT 4 STROKE 2010> -876824- More informationQuantity required : 1 |
||||||
|
20 |
CM160301 - CUVETTE More informationQuantity required : 1 |
||||||
|
21 |
B018773 - PLAQUETTE More informationQuantity required : 1 |
