Vehicle Exploded View - VESPA VESPA SPRINT 50 4T 4V 2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

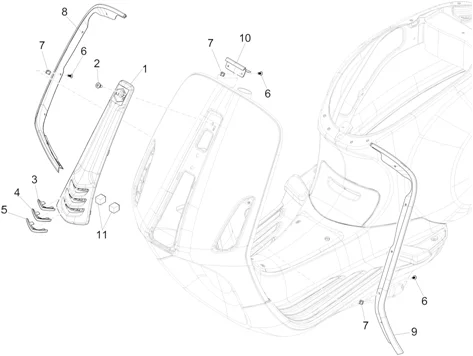

Châssis - parties plastiques - carrosseries : 02.26 TABLIER AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/231/Vespa_Sprint_50_4T_4V_2014_02.26.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/4/8/2/img/75482.JPG)
1 |
STEERING COVER "PIAGGIO GENUINE PART" 50-125 VESPA PRIMAVERA RAW TO BE PAINT -1B000203- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/4/8/3/img/75483.jpg)
1 |
STEERING COVER "PIAGGIO GENUINE PART" 50-125 VESPA PRIMAVERA BLACK 94 -1B00020300090- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/4/8/5/img/75485.JPG)
1 |
1B000203000BR - COUVERCLE DE DIRECTION More informationQuantity required : 1 |
||||||
1 |
1B000203000DQ - COUVERCLE DE DIRECTION More informationQuantity required : 1 |
||||||
|
1 |
1B000203000L5 - COUVERCLE DE DIRECTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/4/9/1/img/75491.JPG)
1 |
1B000203000R7 - COUVERCLE DE DIRECTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/5/img/73365.jpg)
2 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179202- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/5/1/9/img/75519.jpg)
3 |
DECAL- FRONT PANEL "PIAGGIO GENUINE PART" 50-125 VESPA PRIMAVERA, SPRINT -1B000272- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/5/2/0/img/75520.jpg)
4 |
DECAL- FRONT PANEL "PIAGGIO GENUINE PART" 50-125 VESPA PRIMAVERA, SPRINT -1B000273- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/5/2/1/img/75521.jpg)
5 |
DECAL- FRONT PANEL "PIAGGIO GENUINE PART" 50-125 VESPA PRIMAVERA, SPRINT -1B000274- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/8/img/73358.jpg)
6 |
SCREW - SELF DRILLING (M4,2X13) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM178603- More informationQuantity required : 14 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/3/2/img/65832.jpg)
7 |
EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -199190- More informationQuantity required : 14 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/3/6/8/img/91368.jpg)
8 |
FRONT FAIRING EDGE-RIGHT - CHROME "PIAGGIO GENUINE PART" VESPA 50-125 PRIMAVERA 2013>, SPRINT 2014> -673639- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/3/6/7/img/91367.jpg)
9 |
FRONT FAIRING EDGE-LEFT - CHROME "PIAGGIO GENUINE PART" 50-125 VESPA SPRINT 2014>, PRIMAVERA 2013> -673638- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/5/7/7/img/91577.JPG)
10 |
674145 - BORDURE TABLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/8/2/0/img/75820.jpg)
11 |
1B001113 - SILENTBLOC More informationQuantity required : 2 |
