Vehicle Exploded View - VESPA VESPA SPRINT 50 4T 4V 2014 VESPA

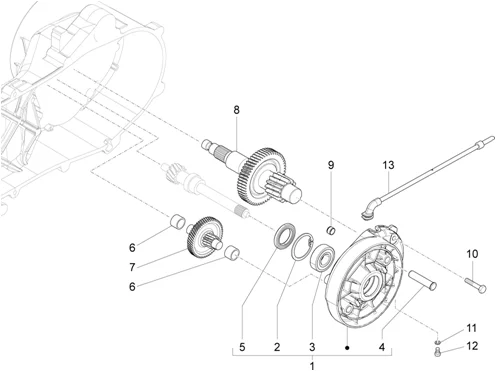

Moteur : 01.25 ENSEMBLE RÉDUCTEUR
Ensemble réducteur
Search
TRANSMISSION SIDE COVER "PIAGGIO GENUINE PART" 50 TYPHOON, FLY, LIBERTY, VESPA PRIMAVERA, SPRINT/APRILIA 50 SCARABEO, SR MOTARD -B0146385-

1
P2R reference P2R reference 72649
Maker reference Maker reference B0146385

TRANSMISSION SIDE COVER "PIAGGIO GENUINE PART" 50 TYPHOON, FLY, LIBERTY, VESPA PRIMAVERA, SPRINT/APRILIA 50 SCARABEO, SR MOTARD -B0146385-

More information

Quantity required : 1
CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006647-

2
P2R reference P2R reference 63825
Maker reference Maker reference 0066475

CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006647-

More information

Quantity required : 1
DRIVE SHAFT BEARING (20X47X14) "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -434735-

3
P2R reference P2R reference 66459
Maker reference Maker reference 434735

DRIVE SHAFT BEARING (20X47X14) "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -434735-

More information

Quantity required : 1
272921 - BAGUE

4
P2R reference P2R reference 66120
Maker reference Maker reference 272921

272921 - BAGUE

More information

Quantity required : 1
GASKET RING- WHEEL AXLE (47X30X6) "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 -478498-

5
P2R reference P2R reference 66558
Maker reference Maker reference 478498

GASKET RING- WHEEL AXLE (47X30X6) "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 -478498-

More information

Quantity required : 1
WASHER FOR SECONDARY TRANSMISSION SHAFT "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288639-

6
P2R reference P2R reference 66196
Maker reference Maker reference 288639

WASHER FOR SECONDARY TRANSMISSION SHAFT "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288639-

More information

Quantity required : 2
833784 - ARBRE DE RENVOI

7
P2R reference P2R reference 92901
Maker reference Maker reference 833784

833784 - ARBRE DE RENVOI

More information

Quantity required : 1
8337855 - AXE ROUE

8
P2R reference P2R reference 69085
Maker reference Maker reference 8337855

8337855 - AXE ROUE

More information

Quantity required : 1
COMPENSATOR RING ON MAIN PULLEY AXLE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTERS 50 cc -478197-

9
P2R reference P2R reference 66548
Maker reference Maker reference 478197

COMPENSATOR RING ON MAIN PULLEY AXLE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTERS 50 CC -478197-

More information

Quantity required : 1
SCREW 8x45 for chain guide "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -B016805-

10
P2R reference P2R reference 72730
Maker reference Maker reference B016805

SCREW 8X45 FOR CHAIN GUIDE "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -B016805-

More information

Quantity required : 5
DRAIN SCREW GASKET (8,2x12x1) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -485703-

11
P2R reference P2R reference 66689
Maker reference Maker reference 485703

DRAIN SCREW GASKET (8,2X12X1) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -485703-

More information

Quantity required : 1
269755 - VIS

12
P2R reference P2R reference 66085
Maker reference Maker reference 269755

269755 - VIS

More information

Quantity required : 1
CM162202 - TUBE

13
P2R reference P2R reference 73335
Maker reference Maker reference CM162202

CM162202 - TUBE

More information

Quantity required : 1
