Vehicle Exploded View - VESPA VESPA SPRINT 50 4T 4V 2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

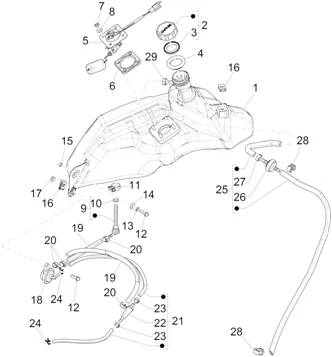

Châssis - parties plastiques - carrosseries : 02.47 RÉSERVOIR CARBURANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/231/Vespa_Sprint_50_4T_4V_2014_02.47.PNG)
1 |
674863 - RESERVOIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/3/0/8/img/68308.jpg)
2 |
FUEL CAP "PIAGGIO GENUINE PART" COMMON TO THE MAXISCOOTER RANGE -656022- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/3/0/7/img/68307.JPG)
3 |
656021 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/6/3/2/img/67632.jpg)
4 |
GASKET FOR COOLANT TANK CAP "PIAGGIO GENUINE PART" PIAGGIO 125-250-400 BEVERLY, X-EVO, X8, 50-125 VESPA PRIMAVERA, SPRINT, 50 ZIP, NRG/GILERA 125-250-300 NEXUS, X-MAX -620737- More informationQuantity required : 1 |
||||||
|
5 |
680056 - INDICATEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/3/6/4/img/109364.JPG)
6 |
676200 - JOINT More informationQuantity required : 1 |
||||||
|
7 |
709116 - ECROU More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/0/3/img/63803.jpg)
8 |
006125 - RONDELLE S00612500 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/6/7/8/img/91678.jpg)
9 |
FUEL COMPLETE COUPLING "PIAGGIO GENUINE PART" 125 LIBERTY, VESPA GTS, VESPA LX/GILERA 125 RUNNER (50 TYPHOON 2011>/APRILIA 50 SR MOTARD 2011>-PAR DEFAUT) -674592- More informationQuantity required : 1 |
||||||
|
10 |
L1200355 - JOINT O RING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/1/6/img/70716.jpg)
11 |
FUEL TAP HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER/ MAXISCOOTER -879888- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/7/img/65447.jpg)
12 |
018639 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
13 |
016406 - RONDELLE S01640600 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/6/img/65366.jpg)
14 |
013880 - RONDELLE More informationQuantity required : 1 |
||||||
|
15 |
1B000285 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
16 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/7/img/66187.jpg)
17 |
NUT - FOR EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288245- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/6/7/9/img/91679.jpg)
18 |
FUEL TAP "PIAGGIO GENUINE PART" 50 VESPA PRIMAVERA 2013>, SPRINT 2013>, VESPA LX 2009>2013, TYPHONN 2010>, LIBERTY 2009>2013/APRILIA 50 SR MOTARD 2010> -674595- More informationQuantity required : 1 |
||||||
|
19 |
CM183403 - TUYAU SAE J30R7/R14T2 3/16" L=620 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/3/img/72863.jpg)
20 |
CM001901 - COLLIER More informationQuantity required : 4 |
||||||
|
21 |
1B000392 - TUBE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/7/7/6/img/67776.jpg)
22 |
FUEL FILTER "PIAGGIO GENUINE PART" 50-125 FLY, LIBERTY, TYPHOON, VESPA LX, VESPA-S/GILERA 50 STALKER, SMT, RCR/APRILIA 50 SPORT-CITY, SCARABEO -624522- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/3/img/72873.JPG)
23 |
CM001912 - COLLIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/8/8/img/72888.jpg)
24 |
HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE PIAGGIO RANGE -CM002901- More informationQuantity required : 2 |
||||||
|
25 |
1B000694 - VOLET More informationQuantity required : 1 |
||||||
|
26 |
CM179008 - VOLET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/5/img/72875.JPG)
27 |
CM001914 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/9/img/72919.jpg)
28 |
CM013203 - RESSORT More informationQuantity required : 2 |
||||||
|
29 |
CM001914 - COLLIER More informationQuantity required : 1 |
