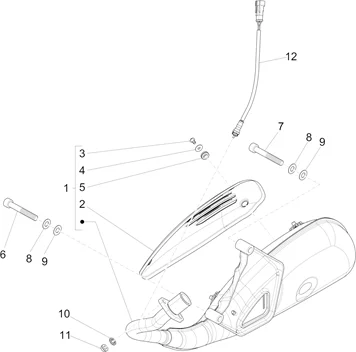

Moteur : 01.42 SILENCIEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/715/Vespa_S_150_4T_2V_IE_E3_College_2009-2011_01.42.PNG)
1 |
B0173915 - SILENCIEUX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/3/0/1/7/img/93017.jpg)
2 |
EXHAUST BODY PROTECTION "PIAGGIO GENUINE PART" 50-125 LIBERTY, VESPA LX, VESPA-S, 125 VESPA GTS -8454655- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/4/img/71934.jpg)
3 |
SCREW - M5X10 "PIAGGIO GENUINE PARTS" COMMON TO THE RANGE -AP8152267- More informationQuantity required : 3 |
||||||
|
3 |
SCREW - M5X10 "PIAGGIO GENUINE PARTS" COMMON TO THE RANGE -AP8152267- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/0/7/img/69207.jpg)
4 |
841821 - RONDELLE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/0/4/img/69204.jpg)
5 |
841782 - PASSE CABLE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/2/1/img/69321.jpg)
6 |
844483 - VIS More informationQuantity required : 1 |
||||||
|
7 |
825643 - RONDELLE More informationQuantity required : 2 |
||||||
|
7 |
878735 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/0/7/img/69107.jpg)
8 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -834187- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/9/img/66509.jpg)
9 |
NUT - TO HEAD/EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -436947- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/8/8/img/68488.JPG)
10 |
709012 - RONDELLE More informationQuantity required : 2 |
||||||
|
11 |
872997 - VIS M8X55 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/9/img/67299.jpg)
12 |
LAMBDA SENSOR "PIAGGIO GENUINE PART" 50 LIBERTY 3V 2015> -584344- More informationQuantity required : 1 |
