Vehicle Exploded View - VESPA VESPA S 150 4T 2V IE E3 College 2009-2011
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

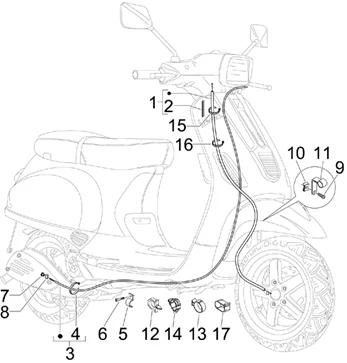

Instalation du freins - transmisisons : 05.03 TRANSMISSIONS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/715/Vespa_S_150_4T_2V_IE_E3_College_2009-2011_05.03.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/1/6/4/img/87164.jpg)
1 |
TRANSMISSION SPEEDOMETER CABLE "PIAGGIO GENUINE PART" 50-125 VESPA-S 2007> -650836- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/3/img/63833.jpg)
2 |
006716 - JOINT S00671600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/0/3/0/img/80030.jpg)
3 |
CABLE KIT FOR REAR BRAKE "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S, NRG POWER DT -564217- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
4 |
LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/7/2/img/67072.jpg)
5 |
564645 - PLAQUETTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/7/img/68497.jpg)
6 |
709674 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/8/img/66088.jpg)
7 |
NUT - TO ADJUST REAR BRAKE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -270310- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/4/img/65794.jpg)
8 |
REAR BRAKE ADJUSTER PIN "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -179640- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/2/img/65402.jpg)
9 |
015900 - VIS S01590000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
10 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/8/7/8/img/79878.jpg)
11 |
HOSE CLAMP "PIAGGIO GENUINE PART" 50-125 VESPA S , LX, LXV, LT, GTS 50-125 -562919- More informationQuantity required : 1 |
||||||
12 |
CM006904 - OLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/7/img/72917.JPG)
13 |
CM013201 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/8/img/72918.JPG)
14 |
CM013202 - RESSORT More informationQuantity required : 1 |
||||||
|
15 |
LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298- More informationQuantity required : 1 |
||||||
|
16 |
LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
17 |
257134 - COLLIER More informationQuantity required : 1 |
