Vehicle Exploded View - VESPA VESPA S 150 4T 2V IE E3 College 2009-2011
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

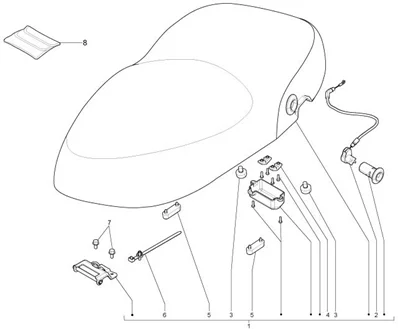

Châssis - parties plastiques - carrosseries : 02.39 SELLE/SIEGES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/715/Vespa_S_150_4T_2V_IE_E3_College_2009-2011_02.39.PNG)
1 |
65428500AI - SELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/8/2/7/4/img/88274.jpg)
1 |
SADDLE- "PIAGGIO GENUINE PART" VESPA 125 S 2007>2012, LX 50 2009 -65428500AN- More informationQuantity required : 1 |
||||||
|
1 |
65428500C1 - SELLE More informationQuantity required : 1 |
||||||
|
1 |
65428500C2 - SELLE More informationQuantity required : 1 |
||||||
|
1 |
67329500C1 - SELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/8/1/0/7/img/88107.jpg)
2 |
SEAT OPENING TRANSMISSION CABLE "PIAGGIO GENUINE PART" O 50-125 VESPA LX 2005, VESPA S 2007> -653994- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/5/7/img/67157.jpg)
3 |
SADDLE PAD "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -577492- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/9/4/img/66294.jpg)
4 |
296743 - PONTET More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/9/2/img/66292.jpg)
5 |
296456 - TAMPON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/7/img/66307.jpg)
6 |
298729 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/6/img/72706.jpg)
7 |
B016426 - VIS TEF M6X14 More informationQuantity required : 2 |
||||||
|
8 |
601030 - TROUSSE OUTILS More informationQuantity required : 1 |
