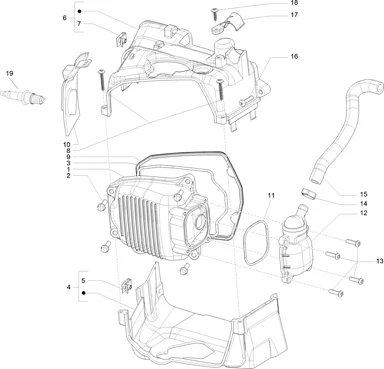

Vehicle Exploded View - VESPA VESPA S 150 4T 2V IE E3 College 2009-2011
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)
Moteur : 01.12 COUVERCLE CULASSE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/715/Vespa_S_150_4T_2V_IE_E3_College_2009-2011_01.12.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/4/8/img/70648.jpg)
1 |
CYLINDER HEAD COVER "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTER 125CC AIR COOLED -877140- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/7/img/65447.jpg)
2 |
018639 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/7/0/img/68870.jpg)
3 |
GASKET - FOR CYLINDER HEAD COVER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 CC AIR -829817- More informationQuantity required : 1 |
||||||
4 |
871760 - COIFFE CYLINDRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/9/8/img/65998.jpg)
5 |
248419 - PLAQUETTE PLASTIQUE More informationQuantity required : 1 |
||||||
|
6 |
878520 - COIFFE CYLINDRE More informationQuantity required : 1 |
||||||
|
6 |
B013100 - COIFFE CYLINDRE More informationQuantity required : 1 |
||||||
|
7 |
248419 - PLAQUETTE PLASTIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/8/img/66038.jpg)
8 |
259577 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/3/4/img/68534.jpg)
9 |
GASKET - FOR CYLINDER HEAD COVER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 CC AIR -825364- More informationQuantity required : 1 |
||||||
|
10 |
880500 - BOUGIE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/3/5/img/68535.jpg)
10 |
825368 - BOUGIE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/3/9/1/img/139391.jpg)
11 |
GASKET - FOR CYLINDER HEAD COVER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 -1A003985- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/0/9/img/68809.jpg)
12 |
OIL BLEED COVER "PIAGGIO GENUINE PART" 125 FLY, LIBERTY, VESPA LX, VESPA-S -829008- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/3/3/img/72733.JPG)
13 |
B016808 - VIS M5X20 More informationQuantity required : 4 |
||||||
|
13 |
B016808 - VIS M5X20 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/6/img/72866.jpg)
14 |
HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM001904- More informationQuantity required : 1 |
||||||
|
15 |
876885 - TUBE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/7/0/img/68770.jpg)
16 |
SCREW - (5X22) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -828662- More informationQuantity required : 3 |
||||||
|
17 |
880685 - COUVERCLE TUBE BLOW-BY More informationQuantity required : 1 |
||||||
|
17 |
877170 - COUVERCLE TUBE BLOW-BY More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
18 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/1/3/img/67813_d.jpg)
19 |
SPARK PLUG CR7EB "PIAGGIO GENUINE PART" 125 FLY, LIBERTY, X8 STREET, VESPA LX, VESPA-S/APRILIA 125 MOJITO, SPORT-CITY ONE -638852- More informationQuantity required : 1 |
||||||
|
19 |
641517 - BOUGIES (U22ESR-N) More informationQuantity required : 1 |
