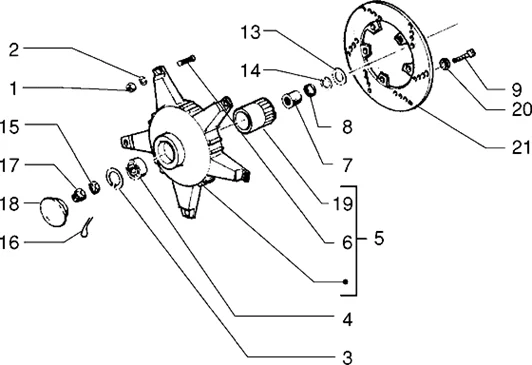

Vehicle Exploded View - VESPA VESPA PX 125 E 1998-2005 VESPA

Suspensions-roues : T44 TAMBOUR AV.
Tambour av.
Search
NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108

1
P2R reference P2R reference 65463
Maker reference Maker reference 0201085

NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108

More information

Quantity required : 7

WASHER (13,75x8,15x4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408

2
P2R reference P2R reference 65418
Maker reference Maker reference 0164085

WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408

More information

Quantity required : 5

CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006635

3
P2R reference P2R reference 63823
Maker reference Maker reference 0066355

CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006635

More information

Quantity required : 1

FRONT WHEEL BEARING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -177610

4
P2R reference P2R reference 75030
Maker reference Maker reference 177610

FRONT WHEEL BEARING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -177610

More information

Quantity required : 1

FRONT BRAKE DRUM "PIAGGIO GENUINE PART"VESPA 125 PX -563762-

5
P2R reference P2R reference 79953
Maker reference Maker reference 563762

FRONT BRAKE DRUM "PIAGGIO GENUINE PART"VESPA 125 PX -563762-

More information

Quantity required : 1

229796 - GOUJON

6
P2R reference P2R reference 76658
Maker reference Maker reference 229796

229796 - GOUJON

More information

Quantity required : 5

ROLLER BEARING "PIAGGIO GENUINE PART" FOR ALL MAXISCOOTERS -177442

7
P2R reference P2R reference 65778
Maker reference Maker reference 177442

ROLLER BEARING "PIAGGIO GENUINE PART" FOR ALL MAXISCOOTERS -177442

More information

Quantity required : 1

FRONT WHEEL GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -177443

8
P2R reference P2R reference 75023
Maker reference Maker reference 177443

FRONT WHEEL GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -177443

More information

Quantity required : 1

BRAKE DISC SCREW (6x20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -667152

9
P2R reference P2R reference 68436
Maker reference Maker reference 667152

BRAKE DISC SCREW (6X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -667152

More information

Quantity required : 5

177414 - ENTRETOISE

13
P2R reference P2R reference 75021
Maker reference Maker reference 177414

177414 - ENTRETOISE

More information

Quantity required : 1

CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006422

14
P2R reference P2R reference 63816
Maker reference Maker reference 0064225

CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006422

More information

Quantity required : 1

021114 - ECROU S02111400

15
P2R reference P2R reference 65601
Maker reference Maker reference 0211145

021114 - ECROU S02111400

More information

Quantity required : 1

REAR WHEEL SAFETY PIN "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -012789

16
P2R reference P2R reference 65355
Maker reference Maker reference 0127895

REAR WHEEL SAFETY PIN "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -012789

More information

Quantity required : 1

CAP - FOR WHEEL "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER / MAXISCOOTER -177609

17
P2R reference P2R reference 75029
Maker reference Maker reference 177609

CAP - FOR WHEEL "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER / MAXISCOOTER -177609

More information

Quantity required : 1

197983 - BOUCHON DE FREIN

18
P2R reference P2R reference 65830
Maker reference Maker reference 197983
Replaced by référence Replaced by référence 139376

197983 - BOUCHON DE FREIN

More information

Quantity required : 1

197983 - BOUCHON DE FREIN

18
P2R reference P2R reference 65830
Maker reference Maker reference 1979835
Replaced by référence Replaced by référence 139376

197983 - BOUCHON DE FREIN

More information

Quantity required : 1

SPEEDOMETER RING GEAR SOCKET "PIAGGIO GENUINE PART" 125 VESPA PX -563873-

19
P2R reference P2R reference 79977
Maker reference Maker reference 563873

SPEEDOMETER RING GEAR SOCKET "PIAGGIO GENUINE PART" 125 VESPA PX -563873-

More information

Quantity required : 1

006966 - RONDELLE S00696600

20
P2R reference P2R reference 63838
Maker reference Maker reference 0069665

006966 - RONDELLE S00696600

More information

Quantity required : 5

FRONT BRAKE DISC"PIAGGIO GENUINE PART" 50-125 VESPA LX 2005>, VESPA S 2007>, PRIMAVERA 2013>, FLY 2005>, 50 ZIP SP 2006>, 125 VESPA PX 2001> -56395R

21
P2R reference P2R reference 67040
Maker reference Maker reference 56395R

FRONT BRAKE DISC"PIAGGIO GENUINE PART" 50-125 VESPA LX 2005>, VESPA S 2007>, PRIMAVERA 2013>, FLY 2005>, 50 ZIP SP 2006>, 125 VESPA PX 2001> -56395R

More information

Quantity required : 1
