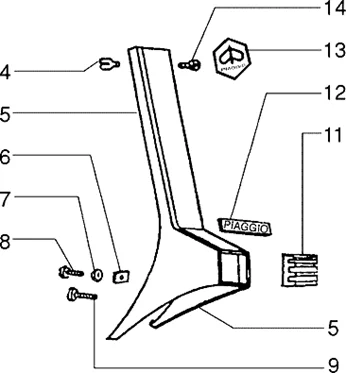

Vehicle Exploded View - VESPA VESPA PX 125 E 1998-2005 VESPA

Châssis : T33 CACHE DIRECTION
Cache direction
Search
EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -199190

4
P2R reference P2R reference 65832
Maker reference Maker reference 199190

EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -199190

More information

Quantity required : 1

STEERING COVER- "PIAGGIO GENUINE PART" 125 VESPA PX -5769685-

5
P2R reference P2R reference 81005
Maker reference Maker reference 5769685

STEERING COVER- "PIAGGIO GENUINE PART" 125 VESPA PX -5769685-

More information

Quantity required : 1

CM017412 - PLAQUETTE

6
P2R reference P2R reference 72927
Maker reference Maker reference CM017412

CM017412 - PLAQUETTE

More information

Quantity required : 2

003055 - RONDELLE

7
P2R reference P2R reference 63776
Maker reference Maker reference 0030555

003055 - RONDELLE

More information

Quantity required : 2

008455 - VIS

8
P2R reference P2R reference 63855
Maker reference Maker reference 0084555

008455 - VIS

More information

Quantity required : 2

SCREW - (2,9X9,5) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -015727

9
P2R reference P2R reference 65387
Maker reference Maker reference 0157275

SCREW - (2,9X9,5) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -015727

More information

Quantity required : 2

HORN GRILLE "PIAGGIO GENUINE PART" VESPA 125 PX CHROME -564221-

11
P2R reference P2R reference 80032
Maker reference Maker reference 564221

HORN GRILLE "PIAGGIO GENUINE PART" VESPA 125 PX CHROME -564221-

More information

Quantity required : 1

576967 - GRILLE NEZ CLAXON VNX<>VSX 01>>

11
P2R reference P2R reference 81004
Maker reference Maker reference 576967

576967 - GRILLE NEZ CLAXON VNX<>VSX 01>>

More information

Quantity required : 1

CM000402000N - DECALQ NOIR

12
P2R reference P2R reference 94879
Maker reference Maker reference CM000402000N

CM000402000N - DECALQ NOIR

More information

Quantity required : 1

CM0004020036 - MONOG PIAGGIO CHAMPA

12
P2R reference P2R reference 94880
Maker reference Maker reference CM0004020036

CM0004020036 - MONOG PIAGGIO CHAMPA

More information

Quantity required : 1

DECAL- "PIAGGIO GENUINE PART" 125 VESPA PX (VNX-VSX) -576464

13
P2R reference P2R reference 67129
Maker reference Maker reference 576464

DECAL- "PIAGGIO GENUINE PART" 125 VESPA PX (VNX-VSX) -576464

More information

Quantity required : 1

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -008372

14
P2R reference P2R reference 63850
Maker reference Maker reference 0083725

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -008372

More information

Quantity required : 1
