Vehicle Exploded View - VESPA VESPA PX 125 E 1998-2005 VESPA

Suspensions-roues : T38 TUBE DE DIRECTION

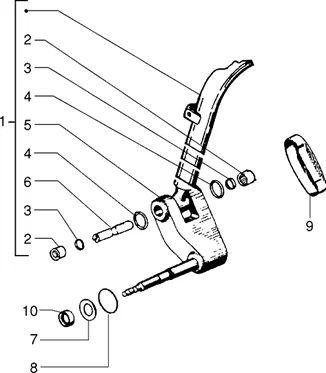

Tube de direction
Search
FRONT FORK "PIAGGIO GENUINE PART" 125 VESPA PX -5640715

1
P2R reference P2R reference 80011
Maker reference Maker reference 5640715

FRONT FORK "PIAGGIO GENUINE PART" 125 VESPA PX -5640715

More information

Quantity required : 1

ROLLER BEARING FOR FORK LINK "PIAGGIO GENUINE PART" COMMON TO THE RANGE VESPA + MP3 -198513

2
P2R reference P2R reference 75262
Maker reference Maker reference 198513

ROLLER BEARING FOR FORK LINK "PIAGGIO GENUINE PART" COMMON TO THE RANGE VESPA + MP3 -198513

More information

Quantity required : 1

GASKET RING FOR FRONT FORK ARTICULATION "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -119219

3
P2R reference P2R reference 65707
Maker reference Maker reference 119219

GASKET RING FOR FRONT FORK ARTICULATION "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -119219

More information

Quantity required : 1

GASKET FOR SUSPENSION ROCKER "PIAGGIO GENUINE PART" COMMON TO THE RANGE VESPA ET MP3 -006731

4
P2R reference P2R reference 63834
Maker reference Maker reference 0067315

GASKET FOR SUSPENSION ROCKER "PIAGGIO GENUINE PART" COMMON TO THE RANGE VESPA ET MP3 -006731

More information

Quantity required : 1

1780515 - BRAS SUSPENSION AVT

5
P2R reference P2R reference 75035
Maker reference Maker reference 1780515

1780515 - BRAS SUSPENSION AVT

More information

Quantity required : 1

ARTICULATION SHAFT AXLE FOR FRONT SWINGING ARM "PIAGGIO GENUINE PART" COMMON TO ALL THE SCOOTER VESPA/125-250-300-400-500 MP3 -177451

6
P2R reference P2R reference 65779
Maker reference Maker reference 177451

ARTICULATION SHAFT AXLE FOR FRONT SWINGING ARM "PIAGGIO GENUINE PART" COMMON TO ALL THE SCOOTER VESPA/125-250-300-400-500 MP3 -177451

More information

Quantity required : 1

177445 - ENTRETOISE

7
P2R reference P2R reference 75024
Maker reference Maker reference 177445

177445 - ENTRETOISE

More information

Quantity required : 1

177408 - BAGUE

8
P2R reference P2R reference 65776
Maker reference Maker reference 177408

177408 - BAGUE

More information

Quantity required : 1

FORK PROTECTION - CHROME "PIAGGIO GENUINE PART" 125 VESPA PX -564222

9
P2R reference P2R reference 80033
Maker reference Maker reference 564222

FORK PROTECTION - CHROME "PIAGGIO GENUINE PART" 125 VESPA PX -564222

More information

Quantity required : 1

177521 - BAGUE ETANCHEITE

10
P2R reference P2R reference 75028
Maker reference Maker reference 177521

177521 - BAGUE ETANCHEITE

More information

Quantity required : 1
