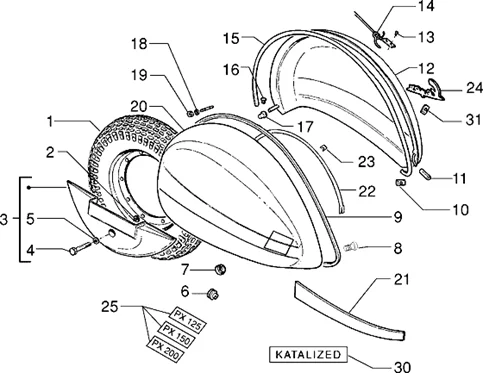

Vehicle Exploded View - VESPA VESPA PX 125 E 1998-2005 VESPA

Châssis : T34 CAPOTS-ROUE
Capots-roue
Search
597452 - ROUE DE SECOURS

1
P2R reference P2R reference 82277
Maker reference Maker reference 597452

597452 - ROUE DE SECOURS

More information

Quantity required : 1

056649 - RONDELLE

2
P2R reference P2R reference 74100
Maker reference Maker reference 0566495

056649 - RONDELLE

More information

Quantity required : 1

226823 - PROTECTION RDS

3
P2R reference P2R reference 76608
Maker reference Maker reference 226823

226823 - PROTECTION RDS

More information

Quantity required : 1

159873 - BOULON

4
P2R reference P2R reference 74913
Maker reference Maker reference 159873

159873 - BOULON

More information

Quantity required : 1

006968 - RONDELLE

5
P2R reference P2R reference 63839
Maker reference Maker reference 0069685

006968 - RONDELLE

More information

Quantity required : 1

070286 - PASSE CABLE

6
P2R reference P2R reference 74141
Maker reference Maker reference 0702865

070286 - PASSE CABLE

More information

Quantity required : 1

156946 - PASSE CABLE

7
P2R reference P2R reference 74897
Maker reference Maker reference 156946

156946 - PASSE CABLE

More information

Quantity required : 1

018074 - RIVET FIX PROFIL S01807400

8
P2R reference P2R reference 73844
Maker reference Maker reference 0180745

018074 - RIVET FIX PROFIL S01807400

More information

Quantity required : 2

GASKET FOR LEFT REAR COWL "PIAGGIO GENUINE PART" PIAGGIO 125 VESPA PX -244095-

9
P2R reference P2R reference 76864
Maker reference Maker reference 244095

GASKET FOR LEFT REAR COWL "PIAGGIO GENUINE PART" PIAGGIO 125 VESPA PX -244095-

More information

Quantity required : 1

008108 - PLAQUE

10
P2R reference P2R reference 63846
Maker reference Maker reference 0081085

008108 - PLAQUE

More information

Quantity required : 2

024041 - TUBE

11
P2R reference P2R reference 74000
Maker reference Maker reference 0240415

024041 - TUBE

More information

Quantity required : 2

REAR COWL -RIGHT- "PIAGGIO GENUINE PART" 125 VESPA PX -577136

12
P2R reference P2R reference 81326
Maker reference Maker reference 5775136

REAR COWL -RIGHT- "PIAGGIO GENUINE PART" 125 VESPA PX -577136

More information

Quantity required : 1

010764 - RIVET S01076400

13
P2R reference P2R reference 73710
Maker reference Maker reference 0107645

010764 - RIVET S01076400

More information

Quantity required : 4

14
P2R reference P2R reference
Maker reference Maker reference 0739545

GASKET FOR RIGHT REAR COWL "PIAGGIO GENUINE PART" PIAGGIO 125 VESPA PX -227273 -

15
P2R reference P2R reference 76619
Maker reference Maker reference 227273

GASKET FOR RIGHT REAR COWL "PIAGGIO GENUINE PART" PIAGGIO 125 VESPA PX -227273 -

More information

Quantity required : 1

195087 - TAMPON

16
P2R reference P2R reference 75201
Maker reference Maker reference 195087

195087 - TAMPON

More information

Quantity required : 1

216053 - CONTACTEUR

17
P2R reference P2R reference 76426
Maker reference Maker reference 216053

216053 - CONTACTEUR

More information

Quantity required : 2

WASHER (13,75x8,15x4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408

18
P2R reference P2R reference 65418
Maker reference Maker reference 0164085

WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408

More information

Quantity required : 2

NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108

19
P2R reference P2R reference 65463
Maker reference Maker reference 0201085

NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108

More information

Quantity required : 2

REAR COWL -LEFT- "PIAGGIO GENUINE PART" 125 VESPA PX -5758016

20
P2R reference P2R reference 80681
Maker reference Maker reference 5758016

REAR COWL -LEFT- "PIAGGIO GENUINE PART" 125 VESPA PX -5758016

More information

Quantity required : 1

228864 - PROTECTION DROITE

21
P2R reference P2R reference 76640
Maker reference Maker reference 228864

228864 - PROTECTION DROITE

More information

Quantity required : 1

PROTECTION GAUCHE

22
P2R reference P2R reference
Maker reference Maker reference 228880

PROTECTION GAUCHE

241559 - CABLE CLIGNO

22
P2R reference P2R reference 76835
Maker reference Maker reference 241559

241559 - CABLE CLIGNO

More information

Quantity required : 2

241167 - RESSORT

23
P2R reference P2R reference 76829
Maker reference Maker reference 241167

241167 - RESSORT

More information

Quantity required : 1

DECAL "VESPA" "PIAGGIO GENUINE PART" FOR ALL SCOOTERS 50-125 VESPA -656220

24
P2R reference P2R reference 89131
Maker reference Maker reference 656220

DECAL "VESPA" "PIAGGIO GENUINE PART" FOR ALL SCOOTERS 50-125 VESPA -656220

More information

Quantity required : 1

LABEL- "PX125" "PIAGGIO GENUINE PART" VESPA 125 PX -575795-

25
P2R reference P2R reference 80675
Maker reference Maker reference 575795

LABEL- "PX125" "PIAGGIO GENUINE PART" VESPA 125 PX -575795-

More information

Quantity required : 1

436545 - PANNEAU INSO DRT

26
P2R reference P2R reference 78685
Maker reference Maker reference 436545

436545 - PANNEAU INSO DRT

More information

Quantity required : 1

000838 - VIS S00083800

27
P2R reference P2R reference 73606
Maker reference Maker reference 0008385

000838 - VIS S00083800

More information

Quantity required : 4

003053 - RONDELLE

28
P2R reference P2R reference 63774
Maker reference Maker reference 0030535

003053 - RONDELLE

More information

Quantity required : 8

PANNEAU INSO GAU

29
P2R reference P2R reference
Maker reference Maker reference 246598

PANNEAU INSO GAU

575736 - MONOGRAMME KAT

30
P2R reference P2R reference 67121
Maker reference Maker reference 575736

575736 - MONOGRAMME KAT

More information

Quantity required : 1

008108 - PLAQUE

31
P2R reference P2R reference 63846
Maker reference Maker reference 0081085

008108 - PLAQUE

More information

Quantity required : 1
