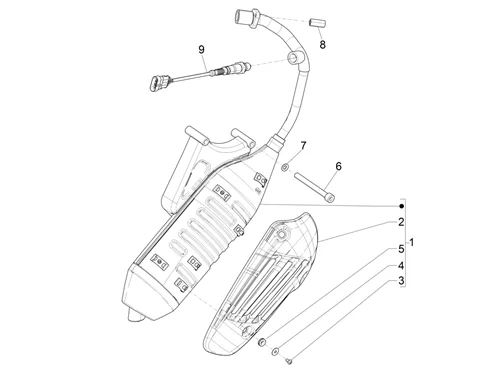

Vehicle Exploded View - VESPA VESPA PRIMAVERA 50 4T-3V NOABS E4 2017-2018 (EMEA) VESPA

Moteur : 01.42 SILENCIEUX
Silencieux
Search
1A0097755 - SILENCIEUX COMPLET

1
P2R reference P2R reference 149157
Maker reference Maker reference 1A0097755

1A0097755 - SILENCIEUX COMPLET

More information

Quantity required : 1

EXHAUST PROTECTION "PIAGGIO GENUINE PART" 125 VESPA PRIMAVERA, SPRINT -1A006767

2
P2R reference P2R reference 139631
Maker reference Maker reference 1A006767

EXHAUST PROTECTION "PIAGGIO GENUINE PART" 125 VESPA PRIMAVERA, SPRINT -1A006767

More information

Quantity required : 1

SCREW - M5X10 "PIAGGIO GENUINE PARTS" COMMON TO THE RANGE -AP8152267

3
P2R reference P2R reference 71934
Maker reference Maker reference AP8152267

SCREW - M5X10 "PIAGGIO GENUINE PARTS" COMMON TO THE RANGE -AP8152267

More information

Quantity required : 3

SCREW - M5X10 "PIAGGIO GENUINE PARTS" COMMON TO THE RANGE -AP8152267

3
P2R reference P2R reference 71934
Maker reference Maker reference 1C001493

SCREW - M5X10 "PIAGGIO GENUINE PARTS" COMMON TO THE RANGE -AP8152267

More information

Quantity required : 3

844927 - RONDELLE

4
P2R reference P2R reference 93011
Maker reference Maker reference 844927

844927 - RONDELLE

More information

Quantity required : 3

841782 - PASSE CABLE

5
P2R reference P2R reference 69204
Maker reference Maker reference 841782

841782 - PASSE CABLE

More information

Quantity required : 3

SCREW - HEX SOCKET SREW (8x80) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 CC -842502

6
P2R reference P2R reference 69235
Maker reference Maker reference 842502

SCREW - HEX SOCKET SREW (8X80) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 CC -842502

More information

Quantity required : 2

WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -834187

7
P2R reference P2R reference 69107
Maker reference Maker reference 834187

WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -834187

More information

Quantity required : 2

NUT - ON CYLINDER FOR EXHAUST FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 4 stroke -833494

8
P2R reference P2R reference 69067
Maker reference Maker reference 833494

NUT - ON CYLINDER FOR EXHAUST FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 4 STROKE -833494

More information

Quantity required : 2

LAMBDA SENSOR "PIAGGIO GENUINE PART" 50 LIBERTY 3V 2015> -584344

9
P2R reference P2R reference 67299
Maker reference Maker reference 584344

LAMBDA SENSOR "PIAGGIO GENUINE PART" 50 LIBERTY 3V 2015> -584344

More information

Quantity required : 1
