Vehicle Exploded View - VESPA VESPA PRIMAVERA 50 4T-3V NOABS E4 2017-2018 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

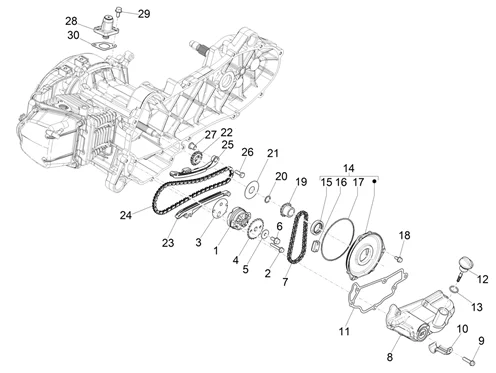

Moteur : 01.18 POMPE À HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/800/Vespa_Primavera_50_4T-3V_NOABS_E4_2017-2018_(EMEA)_01.18.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/4/9/img/70649.jpg)
1 |
OIL PUMP "PIAGGIO GENUINE PART" COMMON TO SCOOTER 50CC 4 STROKE -877262- More informationQuantity required : 1 |
||||||
2 |
874554 - VIS BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/4/img/66504.jpg)
3 |
436751 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/2/img/66182.jpg)
4 |
287913 - COURONNE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/1/img/66501.jpg)
5 |
436695 - CONE ELASTIQUE 6X20 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/6/img/72706.jpg)
6 |
B016426 - VIS TEF M6X14 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/5/4/img/66454.JPG)
7 |
434447 - CHAINE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/3/1/img/69331.JPG)
8 |
MOTOR OIL CUP "PIAGGIO GENUINE PART" PIAGGIO COMMON FOR ALL SCOOTER 50CC - 4 STROKE -844871- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
9 |
SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774- More informationQuantity required : 6 |
||||||
|
9 |
SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774- More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/6/8/img/67068.jpg)
10 |
564629 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/3/2/img/70932.jpg)
11 |
GASKET FOR OIL HOUSING "PIAGGIO GENUINE PART" COMMON FOR SCOOTER 50CC 4STROKE -969132- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/2/5/img/69325.jpg)
12 |
OIL TANK CAP "PIAGGIO GENUINE PART" APRILIA 50 SR MOTARD 4 STROKE 2011>/ PIAGGIO 50 TYPHOON, FLY, ZIP, LIBERTY 4 STROKE/ VESPA 50 LX, SPRINT, PRIMAVERA, S 4 STROKE 2006> -844721- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/2/8/0/img/158280.jpg)
13 |
1A009397 - JOINT "OR" More informationQuantity required : 1 |
||||||
|
13 |
1A009397 - JOINT "OR" More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/5/5/img/66555.jpg)
14 |
TIMING SYSTEM COVER (WITH GASKET) "PIAGGIO GENUINE PART" 50 FLY 4 STROKE, LIBERTY 4 STROKE, VESPA PRIMAVERA 4 STROKE, VESPA LX 4 STROKE -478324- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/4/img/66184.jpg)
15 |
SEAL RING GASKET- FOR CRANSHAFT "PIAGGIO GENUINE PART" (ON VARIATOR SIDE) PIAGGO - COMMON FOR SCOOTER 50CC 4 STROKE -2879633- More informationQuantity required : 1 |
||||||
|
16 |
434345 - TAMPON. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/3/2/img/69332.jpg)
17 |
WATER PUMP DRIVE GEAR GASKET "PIAGGIO GENUINE PART" 50 FLY 4 STROKE, LIBERTY 4 STROKE, ZIP 4 STROKE, VESPA LX 4 STROKE, VESPA-S 4 STROKE -844888- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/5/5/img/66655.jpg)
18 |
484123 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/6/8/img/69068.jpg)
19 |
OIL PUMP PINION "PIAGGIO GENUINE PART" COMMON TO THE RANGE 50CC 4 STROKE -833495- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/6/5/img/66465.jpg)
20 |
434947 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/8/0/img/66380.JPG)
21 |
430535 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/6/9/7/img/174697.JPG)
22 |
9697476 - PINION More informationQuantity required : 1 |
||||||
|
22 |
9697476 - PINION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/2/0/img/149120.JPG)
23 |
1A005756 - DOIGT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/6/7/img/70967.jpg)
24 |
TIMING CHAIN "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTER 50 CC 4 STROKE -96933R- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/2/2/img/149122.JPG)
25 |
1A005975 - TEND. DE CHAINE More informationQuantity required : 1 |
||||||
|
26 |
B016793 - VIS M6X22 More informationQuantity required : 1 |
||||||
|
27 |
1A006491 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/1/6/img/178616.JPG)
28 |
1A019253 - CHAIN TIGHTENING DEVICE More informationQuantity required : 1 |
||||||
|
28 |
1A019253 - CHAIN TIGHTENING DEVICE More informationQuantity required : 1 |
||||||
|
29 |
B016426 - VIS TEF M6X14 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/4/6/img/69546.jpg)
30 |
TIMING SYTEM TENSIONER GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -847928- More informationQuantity required : 1 |
