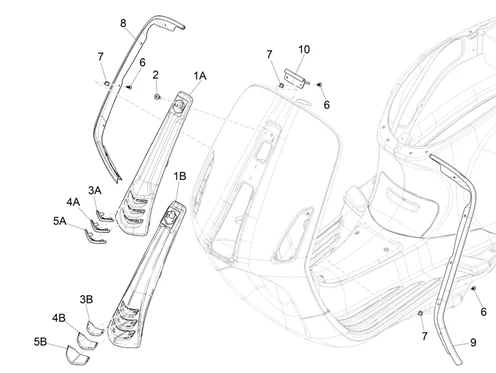

Vehicle Exploded View - VESPA VESPA PRIMAVERA 50 4T-3V NOABS E4 2017-2018 (EMEA) VESPA

Châssis - parties plastiques - carrosseries : 02.26 TABLIER AVANT
Tablier avant
Search
STEERING COVER "PIAGGIO GENUINE PART" 50-125 VESPA PRIMAVERA BLACK 98/A -1B000203000XN2-

1
P2R reference P2R reference 75492
Maker reference Maker reference 1B000203000XN2

STEERING COVER "PIAGGIO GENUINE PART" 50-125 VESPA PRIMAVERA BLACK 98/A -1B000203000XN2-

More information

Quantity required : 1
STEERING COVER- FRONT "PIAGGIO GENUINE PART" 50-125 VESPA PRIMAVERA RAW TO BE PAINT -1B002200-

1
P2R reference P2R reference 148450
Maker reference Maker reference 1B002200

STEERING COVER- FRONT "PIAGGIO GENUINE PART" 50-125 VESPA PRIMAVERA RAW TO BE PAINT -1B002200-

More information

Quantity required : 1
1B000203000T9 - CACHE-DIRECTION

1
P2R reference P2R reference 146297
Maker reference Maker reference 1B000203000T9

1B000203000T9 - CACHE-DIRECTION

More information

Quantity required : 1
1B000203000T8 - COUVERCLE DE DIRECTION

1
P2R reference P2R reference 146296
Maker reference Maker reference 1B000203000T8

1B000203000T8 - COUVERCLE DE DIRECTION

More information

Quantity required : 1
1B000203000R7 - COUVERCLE DE DIRECTION

1
P2R reference P2R reference 75491
Maker reference Maker reference 1B000203000R7

1B000203000R7 - COUVERCLE DE DIRECTION

More information

Quantity required : 1
1B002200000MD - CACHE-DIRECTION

1
P2R reference P2R reference 139902
Maker reference Maker reference 1B002200000MD

1B002200000MD - CACHE-DIRECTION

More information

Quantity required : 1
1B005209000Q9 - CACHE-DIRECTION

1
P2R reference P2R reference 153055
Maker reference Maker reference 1B005209000Q9

1B005209000Q9 - CACHE-DIRECTION

More information

Quantity required : 1
1B005209000S8 - CACHE-DIRECTION

1
P2R reference P2R reference 153056
Maker reference Maker reference 1B005209000S8

1B005209000S8 - CACHE-DIRECTION

More information

Quantity required : 1
1B005209000DY - CACHE-DIRECTION

1
P2R reference P2R reference 153054
Maker reference Maker reference 1B005209000DY

1B005209000DY - CACHE-DIRECTION

More information

Quantity required : 1
1B005446 - CACHE-DIRECTION

1
P2R reference P2R reference 153059
Maker reference Maker reference 1B005446

1B005446 - CACHE-DIRECTION

More information

Quantity required : 1
1B005446000YR5 - CACHE-DIRECTION

1
P2R reference P2R reference 153058
Maker reference Maker reference 1B005446000YR5

1B005446000YR5 - CACHE-DIRECTION

More information

Quantity required : 1
1B000203000BR - COUVERCLE DE DIRECTION

1
P2R reference P2R reference 75485
Maker reference Maker reference 1B000203000BR

1B000203000BR - COUVERCLE DE DIRECTION

More information

Quantity required : 1
STEERING COVER "PIAGGIO GENUINE PART" 50-125 VESPA PRIMAVERA RAW TO BE PAINT -1B000203-

1
P2R reference P2R reference 75482
Maker reference Maker reference 1B000203

STEERING COVER "PIAGGIO GENUINE PART" 50-125 VESPA PRIMAVERA RAW TO BE PAINT -1B000203-

More information

Quantity required : 1
1B005209000DK - CACHE-DIRECTION

1
P2R reference P2R reference 153065
Maker reference Maker reference 1B005209000DK

1B005209000DK - CACHE-DIRECTION

More information

Quantity required : 1
1B005209000ML - CACHE-DIRECTION

1
P2R reference P2R reference 153064
Maker reference Maker reference 1B005209000ML

1B005209000ML - CACHE-DIRECTION

More information

Quantity required : 1
1B005209000TE - CACHE-DIRECTION

1
P2R reference P2R reference 153063
Maker reference Maker reference 1B005209000TE

1B005209000TE - CACHE-DIRECTION

More information

Quantity required : 1
1B005209000XN2 - CACHE-DIRECTION

1
P2R reference P2R reference 153062
Maker reference Maker reference 1B005209000XN2

1B005209000XN2 - CACHE-DIRECTION

More information

Quantity required : 1
1B005446000MD - CACHE-DIRECTION

1
P2R reference P2R reference 153057
Maker reference Maker reference 1B005446000MD

1B005446000MD - CACHE-DIRECTION

More information

Quantity required : 1
1B005209000T9 - CACHE-DIRECTION

1
P2R reference P2R reference 153061
Maker reference Maker reference 1B005209000T9

1B005209000T9 - CACHE-DIRECTION

More information

Quantity required : 1
1B005209000T8 - CACHE-DIRECTION

1
P2R reference P2R reference 153060
Maker reference Maker reference 1B005209000T8

1B005209000T8 - CACHE-DIRECTION

More information

Quantity required : 1
1B005209000R7 - CACHE-DIRECTION

1
P2R reference P2R reference 151330
Maker reference Maker reference 1B005209000R7

1B005209000R7 - CACHE-DIRECTION

More information

Quantity required : 1
1B002200000YR5 - CACHE-DIRECTION

1
P2R reference P2R reference 146342
Maker reference Maker reference 1B002200000YR5

1B002200000YR5 - CACHE-DIRECTION

More information

Quantity required : 1
1B005209000BR - CACHE-DIRECTION

1
P2R reference P2R reference 151329
Maker reference Maker reference 1B005209000BR

1B005209000BR - CACHE-DIRECTION

More information

Quantity required : 1
1B005209 - CACHE-DIRECTION

1
P2R reference P2R reference 151327
Maker reference Maker reference 1B005209

1B005209 - CACHE-DIRECTION

More information

Quantity required : 1
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179202-

2
P2R reference P2R reference 73365
Maker reference Maker reference CM179202

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179202-

More information

Quantity required : 1
1B005290 - DECOR

3
P2R reference P2R reference 151333
Maker reference Maker reference 1B005290

1B005290 - DECOR

More information

Quantity required : 1
CM2978025 - DECORATIONS

3
P2R reference P2R reference 153066
Maker reference Maker reference CM2978025

CM2978025 - DECORATIONS

More information

Quantity required : 1
DECAL- FRONT PANEL "PIAGGIO GENUINE PART" 50-125 VESPA PRIMAVERA, SPRINT -1B000272-

3
P2R reference P2R reference 75519
Maker reference Maker reference 1B000272

DECAL- FRONT PANEL "PIAGGIO GENUINE PART" 50-125 VESPA PRIMAVERA, SPRINT -1B000272-

More information

Quantity required : 1
1B005291 - DECOR

4
P2R reference P2R reference 151335
Maker reference Maker reference 1B005291

1B005291 - DECOR

More information

Quantity required : 1
CM2977025 - DECORATIONS

4
P2R reference P2R reference 153067
Maker reference Maker reference CM2977025

CM2977025 - DECORATIONS

More information

Quantity required : 1
DECAL- FRONT PANEL "PIAGGIO GENUINE PART" 50-125 VESPA PRIMAVERA, SPRINT -1B000273-

4
P2R reference P2R reference 75520
Maker reference Maker reference 1B000273

DECAL- FRONT PANEL "PIAGGIO GENUINE PART" 50-125 VESPA PRIMAVERA, SPRINT -1B000273-

More information

Quantity required : 1
DECAL- FRONT PANEL "PIAGGIO GENUINE PART" 50-125 VESPA PRIMAVERA, SPRINT -1B000274-

5
P2R reference P2R reference 75521
Maker reference Maker reference 1B000274

DECAL- FRONT PANEL "PIAGGIO GENUINE PART" 50-125 VESPA PRIMAVERA, SPRINT -1B000274-

More information

Quantity required : 1
CM2975025 - DECORATIONS

5
P2R reference P2R reference 153068
Maker reference Maker reference CM2975025

CM2975025 - DECORATIONS

More information

Quantity required : 1
1B005292 - DECOR

5
P2R reference P2R reference 151337
Maker reference Maker reference 1B005292

1B005292 - DECOR

More information

Quantity required : 1
SCREW - SELF DRILLING (M4,2X13) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM178603-

6
P2R reference P2R reference 73358
Maker reference Maker reference CM178603

SCREW - SELF DRILLING (M4,2X13) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM178603-

More information

Quantity required : 14
EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -157716-

7
P2R reference P2R reference 109019
Maker reference Maker reference 157716

EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -157716-

More information

Quantity required : 14
CM298702 - BORD DE TABLIER D

8
P2R reference P2R reference 177232
Maker reference Maker reference CM2987025

CM298702 - BORD DE TABLIER D

More information

Quantity required : 1
FRONT FAIRING EDGE-RIGHT - CHROME "PIAGGIO GENUINE PART" VESPA 50-125 PRIMAVERA 2013>, SPRINT 2014> -673639-

8
P2R reference P2R reference 91368
Maker reference Maker reference 673639

FRONT FAIRING EDGE-RIGHT - CHROME "PIAGGIO GENUINE PART" VESPA 50-125 PRIMAVERA 2013>, SPRINT 2014> -673639-

More information

Quantity required : 1
CM298702 - BORD DE TABLIER D

8
P2R reference P2R reference 177232
Maker reference Maker reference CM298702

CM298702 - BORD DE TABLIER D

More information

Quantity required : 1
FRONT FAIRING EDGE-LEFT - BLACK "PIAGGIO GENUINE PART" 50-125 VESPA SPRINT, PRIMAVERA -CM2984025-

9
P2R reference P2R reference 153052
Maker reference Maker reference CM2984025

FRONT FAIRING EDGE-LEFT - BLACK "PIAGGIO GENUINE PART" 50-125 VESPA SPRINT, PRIMAVERA -CM2984025-

More information

Quantity required : 1
FRONT FAIRING EDGE-LEFT - CHROME "PIAGGIO GENUINE PART" 50-125 VESPA SPRINT 2014>, PRIMAVERA 2013> -673638-

9
P2R reference P2R reference 91367
Maker reference Maker reference 673638

FRONT FAIRING EDGE-LEFT - CHROME "PIAGGIO GENUINE PART" 50-125 VESPA SPRINT 2014>, PRIMAVERA 2013> -673638-

More information

Quantity required : 1
674145 - BORDURE TABLIER

10
P2R reference P2R reference 91577
Maker reference Maker reference 674145

674145 - BORDURE TABLIER

More information

Quantity required : 1
CM2985025 - BORDURE TABLIER

10
P2R reference P2R reference 153053
Maker reference Maker reference CM2985025

CM2985025 - BORDURE TABLIER

More information

Quantity required : 1
