Vehicle Exploded View - VESPA VESPA PRIMAVERA 50 4T-3V NOABS E4 2017-2018 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

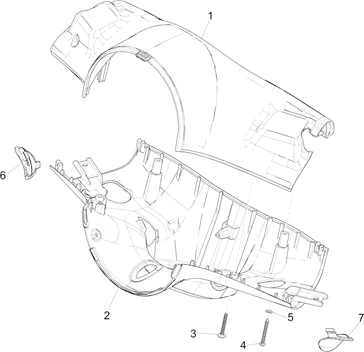

Guidon/direction : 03.01 COUVERTURES GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/800/Vespa_Primavera_50_4T-3V_NOABS_E4_2017-2018_(EMEA)_03.01.png)
1 |
67364600DY - PROTECTION SUP.PROTECTION SUP. More informationQuantity required : 1 |
|||||||||
|
1 |
67364600DK - COUVERCLE GUIDON More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/3/7/8/img/91378.jpg)
1 |
673646 - CACHE GUIDON More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/3/8/5/img/91385.jpg)
1 |
67364600R7 - COUVRE POIGNEE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/3/8/0/img/91380.jpg)
1 |
67364600BR - COUVRE POIGNEE More informationQuantity required : 1 |
|||||||||
|
1 |
67364600T8 - COUVRE POIGNEE More informationQuantity required : 1 |
|||||||||
|
1 |
67364600T9 - COUVRE POIGNEE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/3/8/7/img/91387.JPG)
1 |
UPPER HANDLEBAR COVER "PIAGGIO GENUINE PART" VESPA 50-125 PRIMAVERA NOIR 98/A -67364600XN2- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/3/8/2/img/91382.jpg)
1 |
UPPER HANDLEBAR COVER "PIAGGIO GENUINE PART" VESPA 50-125 PRIMAVERA BROWN 129/A -67364600MD- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/3/1/3/5/img/153135.jpg)
1 |
67364600S8 - PROTECTION SUP. More informationQuantity required : 1 |
|||||||||
|
1 |
67364600Q9 - PROTECTION SUP. More informationQuantity required : 1 |
|||||||||
|
1 |
67364600TE - PROTECTION SUP. GUIDON More informationQuantity required : 1 |
|||||||||
|
1 |
67364600ML - PROTECTION SUP. GUIDON More informationQuantity required : 1 |
|||||||||
|
1 |
67364600YR5 - COUVRE POIGNEE More informationQuantity required : 1 |
|||||||||
|
2 |
1B005469000T9 - COUVERCLE GUIDON More informationQuantity required : 1 |
|||||||||
|
2 |
67364700MD - COUVERCLE GUIDON More informationQuantity required : 1 |
|||||||||
|
2 |
67364700YR5 - COUVERCLE GUIDON More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/6/4/4/img/146644.jpg)
2 |
67364700T9 - COUVRE POIGNEE More informationQuantity required : 1 |
|||||||||
|
2 |
67364700T8 - COUVRE POIGNEE More informationQuantity required : 1 |
|||||||||
|
2 |
67364700BR - COUVRE POIGNEE More informationQuantity required : 1 |
|||||||||
|
2 |
673647 - PARTIE INF GUIDON More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/2/1/7/img/151217.jpg)
2 |
1B005469000R7 - COUVERCLE INF. GUIDON More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/2/1/8/img/151218.JPG)
2 |
HANDLEBAR LOWER COVER "PIAGGIO GENUINE PART" 50-125 VESPA PRIMAVERA BLACK 98/A -1B005469000XN2- More informationQuantity required : 1 |
|||||||||
|
2 |
1B005469000T8 - COUVERCLE INF. GUIDON More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/3/1/4/9/img/153149.JPG)
2 |
1B005469 - COUVERCLE INF. GUIDON More informationQuantity required : 1 |
|||||||||
|
2 |
1B005469000S8 - COUVERCLE INF. GUIDON More informationQuantity required : 1 |
|||||||||
|
2 |
1B005469000DY - COUVERCLE INF. GUIDON More informationQuantity required : 1 |
|||||||||
|
2 |
1B005469000ML - COUVERCLE INF. GUIDON More informationQuantity required : 1 |
|||||||||
|
2 |
1B005469000TE - COUVERCLE INF. GUIDON More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/3/1/4/5/img/153145.JPG)
2 |
1B005469000BR - COUVERCLE INF. GUIDON More informationQuantity required : 1 |
|||||||||
|
2 |
1B005469000DK - COUVERCLE INF. GUIDON More informationQuantity required : 1 |
|||||||||
|
2 |
1B005469000MD - COUVERCLE INF. GUIDON More informationQuantity required : 1 |
|||||||||
|
2 |
1B005469000YR5 - COUVERCLE INF. GUIDON More informationQuantity required : 1 |
|||||||||
|
2 |
1B005469000Q9 - COUVERCLE INF. GUIDON More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/8/img/66038.jpg)
3 |
259577 - VIS More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/1/0/8/img/77108.jpg)
4 |
265636 - VIS More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/5/img/63775.jpg)
5 |
003054 - RONDELLE S00305400 More informationQuantity required : 2 |
|||||||||
|
6 |
67543100MD - COUVERCLE GAU. More informationQuantity required : 1 |
|||||||||
|
6 |
67543100YR5 - COUVERCLE D. More informationQuantity required : 1 |
|||||||||
|
6 |
67543100R7 - COUVERCLE GAU. More informationQuantity required : 1 |
|||||||||
|
6 |
67543100XN2 - COUVERCLE GAU. More informationQuantity required : 1 |
|||||||||
|
6 |
675431 - COUVERCLE GAU. More informationQuantity required : 1 |
|||||||||
|
6 |
67543100T8 - COUVERCLE GAU. More informationQuantity required : 1 |
|||||||||
|
6 |
67543100T9 - COUVERCLE D. More informationQuantity required : 1 |
|||||||||
|
6 |
67543100BR - COUVERCLE GAU. More informationQuantity required : 1 |
|||||||||
|
6 |
67543100DY - COUVERTURE GUIDON DRT. More informationQuantity required : 1 |
|||||||||
|
6 |
67543100S8 - COUVERTURE GUIDON DRT. More informationQuantity required : 1 |
|||||||||
|
6 |
67543100Q9 - COUVERTURE GUIDON DRT. More informationQuantity required : 1 |
|||||||||
|
6 |
67543100TE - COUVERTURE GUIDON DROITE More informationQuantity required : 1 |
|||||||||
|
6 |
67543100ML - COUVERTURE GUIDON DROITE More informationQuantity required : 1 |
|||||||||
|
6 |
67543100DK - COUVERCLE GAU. More informationQuantity required : 1 |
|||||||||
|
7 |
67541300YR5 - COUVERCLE G. More informationQuantity required : 1 |
|||||||||
|
7 |
67541300BR - COUVERCLE DRT More informationQuantity required : 1 |
|||||||||
|
7 |
67541300T9 - COUVERCLE G. More informationQuantity required : 1 |
|||||||||
|
7 |
67541300R7 - COUVERCLE DRT More informationQuantity required : 1 |
|||||||||
|
7 |
67541300T8 - COUVERCLE DRT More informationQuantity required : 1 |
|||||||||
|
7 |
675413 - COUVERCLE DRT More informationQuantity required : 1 |
|||||||||
|
7 |
67541300XN2 - COUVERCLE DRT More informationQuantity required : 1 |
|||||||||
|
7 |
67541300DK - COUVERTURE GUIDON GAUCHE More informationQuantity required : 1 |
|||||||||
|
7 |
67541300ML - COUVERTURE GUIDON GAUCHE More informationQuantity required : 1 |
|||||||||
|
7 |
67541300TE - COUVERTURE GUIDON GAUCHE More informationQuantity required : 1 |
|||||||||
|
7 |
67541300S8 - COUVERTURE GUIDON GAU. More informationQuantity required : 1 |
|||||||||
|
7 |
67541300Q9 - COUVERTURE GUIDON GAU. More informationQuantity required : 1 |
|||||||||
|
7 |
67541300DY - COUVERTURE GUIDON GAU. More informationQuantity required : 1 |
|||||||||
|
7 |
67541300MD - COUVERCLE DRT More informationQuantity required : 1 |
|||||||||
