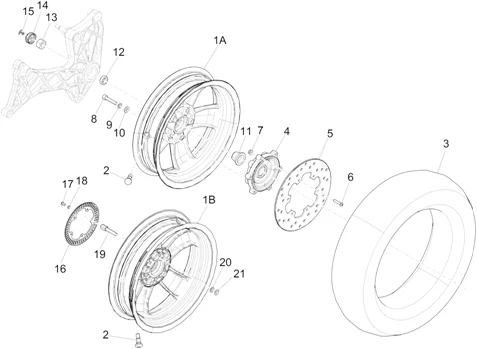

Suspensions - roues : 04.12 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/215/Vespa_GTS_300_ie_2012-2015_04.12.PNG)
1 |
56347R - ROUE More informationQuantity required : 1 |
||||||
|
1 |
1C000781 - ROUE 12" X 3.00 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/5/0/img/67350.jpg)
2 |
597679 - TUBELESS VALVE More informationQuantity required : 1 |
||||||
|
3 |
598278 - PNEU 130/70-12 SAVA MC20 More informationQuantity required : 1 |
||||||
|
3 |
1C000743 - PNEU 130/70-12" FIRM MICHELIN More informationQuantity required : 1 |
||||||
|
3 |
1C000798 - PNEU 130/70-12" (SAVA) More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/6/1/img/67361.jpg)
4 |
REAR DISC HUB "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS, 125 FLY 2012>2013/GILERA 125 RUNNER 2005> -598715- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/8/2/img/67082.jpg)
5 |
FRONT BRAKE DISC "PIAGGIO GENUINE PART" 50 NRG, 125 LIBERTY, FLY, LIBERTY, 125-250-300 VESPA GTS/GILERA 50-125 RUNNER -56484R- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/4/7/img/67347.jpg)
6 |
597564 - VIS More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/4/8/img/67348.jpg)
7 |
597565 - ECROU More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/7/img/65747.jpg)
8 |
SCREW - (8X40) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -149104- More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
9 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047- More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/9/8/img/68798.jpg)
10 |
WHEEL WASHER OR CALIPER WASHER "PIAGGIO GENUINE PART" 125-300-400 MP3, 125-250-300 VESPA GTS, BEVERLY, CARNABY/GILERA 125-250-300 NEXUS -828961- More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/5/5/img/69555.jpg)
11 |
848039 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/4/6/img/67346.jpg)
12 |
SPACER- FOR REAR WHEEL "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 A 500 CC -597528- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/3/5/img/67035.jpg)
13 |
NUT - (16X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -563728- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/9/6/5/0/img/189650.JPG)
14 |
1C004746 - CHAPEAU D'ARRET D'ECROU More informationQuantity required : 1 |
||||||
|
14 |
1C004746 - CHAPEAU D'ARRET D'ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/5/img/65355.jpg)
15 |
REAR WHEEL SAFETY PIN "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -012789 - More informationQuantity required : 1 |
||||||
|
16 |
1C000615 - SON DE ROUE ABS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/4/img/71934.jpg)
17 |
SCREW - M5X10 "PIAGGIO GENUINE PARTS" COMMON TO THE RANGE -AP8152267- More informationQuantity required : 5 |
||||||
|
17 |
SCREW - M5X10 "PIAGGIO GENUINE PARTS" COMMON TO THE RANGE -AP8152267- More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/7/img/63837.jpg)
18 |
006965 - RONDELLE More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/0/2/9/img/76029.jpg)
19 |
1C000617 - VIS More informationQuantity required : 5 |
||||||
|
20 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047- More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/7/9/img/66179.jpg)
21 |
WATER PUMP SHIM WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE 50 CC 2 STROKE 287073- More informationQuantity required : 5 |
