Vehicle Exploded View - VESPA VESPA GTS 300 ie 2012-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

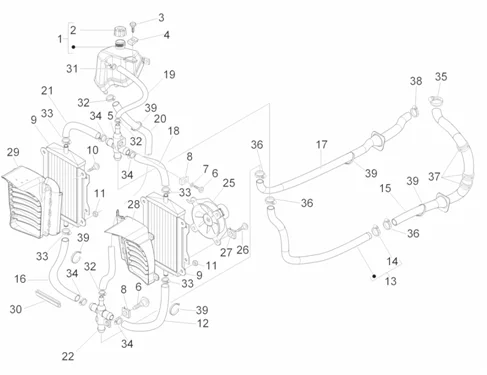

Châssis - parties plastiques - carrosseries : 02.55 INSTALATION DE REFOIDISSEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/215/Vespa_GTS_300_ie_2012-2015_02.55.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/6/5/6/img/89656.jpg)
1 |
COOLANT TANK "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS -657110- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/7/4/3/img/67743.jpg)
2 |
COOLANT TANK CAP "PIAGGIO GENUINE PART" COMMON TO THE MAXISCOOTER RANGE -623673- More informationQuantity required : 1 |
||||||
3 |
257404 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
4 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 1 |
||||||
|
5 |
577195 - RACCORD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/4/img/73364.jpg)
6 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179201- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
7 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047- More informationQuantity required : 1 |
||||||
|
8 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/1/3/0/img/81130.jpg)
9 |
COOLING RADIATOR "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS -577183- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/2/8/0/img/96280.jpg)
10 |
SCREW - FOR PLASTIC BODY PARTS MOUNTING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE (4,2 X16) -CM178606- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/7/img/66187.jpg)
11 |
NUT - FOR EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288245- More informationQuantity required : 6 |
||||||
|
12 |
577201 - TUYAU More informationQuantity required : 1 |
||||||
|
13 |
57333R - TUYAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/6/img/72866.jpg)
14 |
HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM001904- More informationQuantity required : 1 |
||||||
|
15 |
653501 - TUYAU More informationQuantity required : 1 |
||||||
|
16 |
57313R - TUYAU More informationQuantity required : 1 |
||||||
|
17 |
656437 - TUYAU More informationQuantity required : 1 |
||||||
|
18 |
577384 - TUYAU More informationQuantity required : 1 |
||||||
|
19 |
577433 - TUYAU More informationQuantity required : 1 |
||||||
|
20 |
57314R - TUYAU EAU RADIATEUR More informationQuantity required : 1 |
||||||
|
21 |
623013 - TUYAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/3/1/0/img/89310.jpg)
22 |
5 WAY CONNECTION (FOR COOLING) "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS, GTV -656449- More informationQuantity required : 1 |
||||||
|
25 |
COOLING FAN "PIAGGIO GENUINE PARTS" VESPA 125-250 GTS, GTV -584669- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/6/img/73366.JPG)
26 |
CM179301 - VIS More informationQuantity required : 3 |
||||||
|
27 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/1/3/2/img/81132.jpg)
28 |
RADIATOR LEFT AIR INTAKE "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS -577187- More informationQuantity required : 1 |
||||||
|
29 |
622839 - CANALISATION POUR AIR More informationQuantity required : 1 |
||||||
|
30 |
CM077701 - PROTECTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/4/7/4/1/img/204741.jpg)
31 |
CM0019026 - COLLIER SERR. TUBE More informationQuantity required : 1 |
||||||
|
31 |
CM0019026 - COLLIER SERR. TUBE More informationQuantity required : 1 |
||||||
|
32 |
HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM001904- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/7/img/72867.jpg)
33 |
CM001905 - COLLIER More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/8/img/72868.jpg)
34 |
COOLANT//AIR FILTER HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM001907- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/9/img/72869.jpg)
35 |
COOLANT HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTERS -CM001908- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/6/img/72876.jpg)
36 |
COOLANT HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTERS -CM001915- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/5/img/72905.jpg)
37 |
CM006903 - RESSORT More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/8/1/img/72881.jpg)
38 |
COOLANT HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTERS 125-250-300 -CM001922- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
39 |
LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298- More informationQuantity required : 5 |
