Vehicle Exploded View - VESPA VESPA GTS 300 ie 2012-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

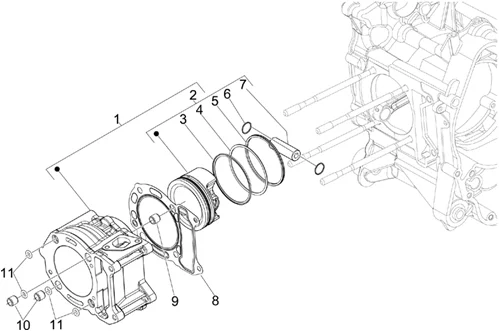

Moteur : 01.07 GROUPE CYLINDRE-PISTON-AXE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/215/Vespa_GTS_300_ie_2012-2015_01.07.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/1/0/img/70610.jpg)
1 |
CYLINDER/PISTON ASSEMBLY "PIAGGIO GENUINE PART" 300 MP3, BEVERLY, X7, VESPA GTS/GILERA 300 NEXUS/APRILIA 300 ATLANTIS, SPORT-CITY, SR-MAX, SCARABEO -876457- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/1/1/img/70611.jpg)
2 |
PISTON "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 300 CC -8764580001- More informationQuantity required : 1 |
||||||
2 |
PISTON "PIAGGIO GENUINE PART" COMMON FOR THE RANGE 300 CC -8764580002- More informationQuantity required : 1 |
||||||
|
2 |
PISTON "PIAGGIO GENUINE PART" COMMON FOR THE RANGE 300 CC -8764580003- More informationQuantity required : 1 |
||||||
|
2 |
PISTON "PIAGGIO GENUINE PART" COMMON FOR THE RANGE 300 CC -8764580004- More informationQuantity required : 1 |
||||||
|
3 |
874958 - SEGMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/6/1/6/img/94616.JPG)
3 |
PISTON COMPRESSION RING- "PIAGGIO GENUINE PART" 300 MP3, BEVERLY, VESPA GTS -B015159- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/6/1/img/70561.jpg)
4 |
874960 - SEGMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/6/1/7/img/94617.JPG)
4 |
OIL SCRAPER PISTON RING- "PIAGGIO GENUINE PART" 300 MP3, BEVERLY, VESPA GTS -B015160- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/6/1/8/img/94618.jpg)
5 |
OIL SCRAPER PISTON RING- "PIAGGIO GENUINE PART" 300 MP3, BEVERLY, VESPA GTS -B015161- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/7/1/img/70571.JPG)
6 |
875096 - CIRCLIPS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/6/9/img/70569.JPG)
7 |
875005 - AXE DE PISTON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/7/4/img/70574.jpg)
8 |
CYLINDER BASE GASKET (0,04MM) "PIAGGIO GENUINE PART" COMMON TO THE RANGE 125-250-300 -875112- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/7/5/img/70575.jpg)
8 |
CYLINDER BASE GASKET (0,06MM) "PIAGGIO GENUINE PART" COMMON TO THE RANGE 125-250-300 -875113- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/7/6/img/70576.jpg)
8 |
CYLINDER BASE GASKET(0,08MM) "PIAGGIO GENUINE PART" COMMON TO THE RANGE 125-250-300 -875114- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/4/2/img/66142.jpg)
9 |
CENTERING PIN (7,5X12) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -277916- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/7/img/72697.jpg)
10 |
CENTERING PIN (11X10) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -B015957- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/6/4/img/72764.jpg)
11 |
O'RING GASKET-CYLINDER BASE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE 125-250 MAXISCOOTER -B017342- More informationQuantity required : 4 |
