Vehicle Exploded View - VESPA VESPA GTS 300 ie 2012-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

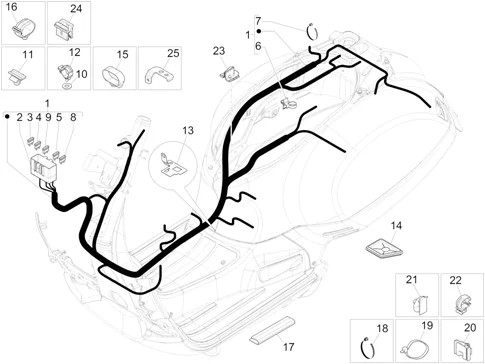

Installation électrique : 06.08 FAISCEAU DE CÂBLES PRINCIPAL
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/215/Vespa_GTS_300_ie_2012-2015_06.08.PNG)
1 |
1D000414 - FAISCEAU DE CABLES More informationQuantity required : 1 |
||||||
|
1 |
642660 - FAISCEAU DE CABLES More informationQuantity required : 1 |
||||||
|
2 |
584211 - FUSE HOLDER TERM.BOARD 6 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/4/4/img/66244.jpg)
3 |
FUSE 15 AMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -290860- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/4/img/66004.jpg)
4 |
252945 - FUSIBLE 7,5A More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/1/img/73401.JPG)
5 |
CM225730 - FUSIBLE More informationQuantity required : 1 |
||||||
|
6 |
640879 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
7 |
LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/4/img/66254.jpg)
8 |
292507 - FUSIBLE 10A More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/6/3/0/img/110630.JPG)
9 |
580561 - FUSIBLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/8/3/img/65683.jpg)
10 |
097734 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/7/5/5/img/85755.jpg)
11 |
639560 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/5/img/72905.jpg)
12 |
CM006903 - RESSORT More informationQuantity required : 1 |
||||||
|
12 |
CM006907 - RESSOT More informationQuantity required : 2 |
||||||
|
12 |
CM006911 - RESSORT More informationQuantity required : 1 |
||||||
|
13 |
641532 - ETRIER More informationQuantity required : 1 |
||||||
|
14 |
641547 - BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/4/img/72904.jpg)
15 |
CM006902 - COLLIER More informationQuantity required : 2 |
||||||
|
16 |
CM006904 - OLLIER More informationQuantity required : 3 |
||||||
|
17 |
CM077703 - PROTECTION More informationQuantity required : 4 |
||||||
|
18 |
LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298- More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
19 |
257134 - COLLIER More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/2/1/2/img/86212.jpg)
20 |
641599 - RESSOT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/0/2/img/67302.jpg)
21 |
584520 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/8/img/72918.JPG)
22 |
CM013202 - RESSORT More informationQuantity required : 1 |
||||||
|
23 |
656656 - JOINT PROTECT ARR FX More informationQuantity required : 1 |
||||||
|
24 |
1D000680 - RESSORT More informationQuantity required : 2 |
||||||
|
25 |
639843 - PATTES More informationQuantity required : 2 |
