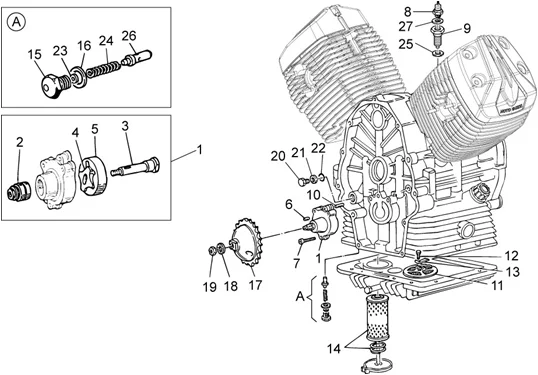

Moteur : 34.39 POMPE A HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/540/V7_Special_750_2014_34.39.PNG)
1 |
GU19146422 - POMPE HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/0/1/4/8/img/100148.jpg)
1 |
ELECTRIC STARTER "PIAGGIO GENUINE PART" MOTO-GUZZI 1200 NORGE, STELVIO, GRISO, 1400 CALIFORNIA, AUDACE, V7, V9, BELLAGIO -97729R- More informationQuantity required : 1 |
||||||
|
2 |
GU92252210 - ROULEMENT A ROULEAUX More informationQuantity required : 1 |
||||||
|
2 |
GU98682435 - VIS M8X35 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/4/img/73554.JPG)
3 |
GU95008208 - RONDELLE 8,4X15X1,8 More informationQuantity required : 2 |
||||||
|
3 |
GU20147810 - ARBRE ENGR.POMPE More informationQuantity required : 1 |
||||||
|
4 |
GU20148410 - ROTOR More informationQuantity required : 1 |
||||||
|
5 |
GU20148610 - ROTOR More informationQuantity required : 1 |
||||||
|
6 |
GU92296723 - ROULEAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/4/0/img/66340.jpg)
7 |
323990 - TENDEUR More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/3/3/img/67933.jpg)
8 |
SENSOR FOR OIL PRESSURE "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTER AND MOTORBIKES (WITH ADAPTATOR 99327 FOR 1200 GRISO, NORGE, STELVIO, SPORT) -1D001138- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/3/2/2/img/99322.jpg)
9 |
OIL PRESSURE GAUGE UNION "PIAGGIO GENUINE PART" MOTO-GUZZI 750 BREVA, NEVADA, V7, 850 V9 -887093- More informationQuantity required : 1 |
||||||
|
10 |
GU19018920 - GOUPILLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/5/4/1/img/129541.jpg)
11 |
OIL FILTER "PIAGGIO GENUINE PART" MOTO GUZZI BREVA 2003>2009, CALIFORNIA, ELDORADO, GRISO 2015>2018 -GU19152200- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/2/7/img/132927.jpg)
12 |
GU98084314 - VIS M6X14 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/6/0/img/132760.jpg)
13 |
GU95187006 - PLAQUETTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/4/4/9/2/img/134492.jpg)
14 |
OIL FILTER "PIAGGIO GENUINE PART" MOTO-GUZZI 750 V7, V9, NEVADA, 750 BREVA, STRADA, V50 -2A000633- More informationQuantity required : 1 |
||||||
|
15 |
GU31159050 - BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/6/1/6/4/img/126164.jpg)
16 |
GU18144350 - RONDELLE More informationQuantity required : 3 |
||||||
|
17 |
GU20147710 - PIGNON DE POMPE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/9/img/71929.jpg)
18 |
OIL PUMP SHAFT WASHER (10,5X16X1) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -AP8152220- More informationQuantity required : 1 |
||||||
|
19 |
GU92602510 - ECROU More informationQuantity required : 1 |
||||||
|
20 |
GU31016050 - BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/4/1/8/img/129418.JPG)
21 |
GU18161150 - GARNITURE 14,25 More informationQuantity required : 1 |
||||||
|
22 |
GU90706111 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/3/img/73553.jpg)
23 |
GU95008206 - RONDELLE 6,15X11X0,8 More informationQuantity required : 3 |
||||||
|
24 |
GU94321079 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/3/7/img/132737.JPG)
25 |
GU95100602 - JOINT More informationQuantity required : 1 |
||||||
|
26 |
GU31150950 - PISTON More informationQuantity required : 1 |
||||||
|
27 |
GU95100309 - RONDELLE More informationQuantity required : 1 |
