Vehicle Exploded View - MOTO-GUZZI V7 750 Special 750 2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

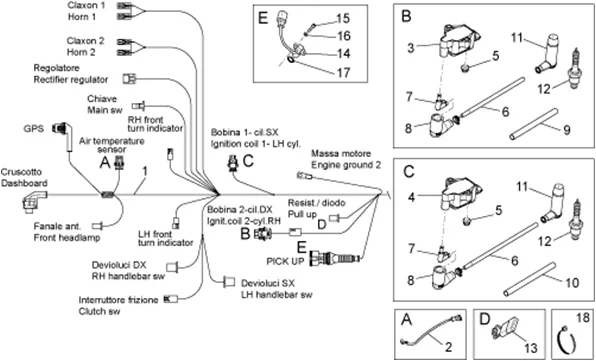

Chassis : 33.30 CIRCUIT ELECTRIQUE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/540/V7_Special_750_2014_33.30.PNG)
1 |
887825 - CABLAGGIO PRINCIPALE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/7/2/img/71572.JPG)
2 |
AP8124936 - DETEC. TEMPER. AIR More informationQuantity required : 1 |
||||||
|
3 |
642034 - BOBINE H.T. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/4/7/img/67947.jpg)
4 |
IGNITION COIL "PIAGGIO GENUINE PART" 125 FLY3 VALVES, LIBERTY 3 VALVES, VESPA LX 3 VALVES, 125-350 YOURBAN, BEVERLY, X-10 -641901- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
5 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/8/img/65668.jpg)
6 |
HIGH TENSION CABLE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -080341- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/4/2/img/67942.jpg)
7 |
INSULATION SHELL FOR SPARK PLUG CAP "PIAGGIO GENUINE PARTS" COMMON FOR MAXISCOOTER 125CC -6417256- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/0/3/img/67903.jpg)
8 |
SPARK PLUG CAP "PIAGGIO GENUINE PART" COMMUN A LA GAMME MAXISCOOTER 125 CC -641040- More informationQuantity required : 2 |
||||||
|
9 |
CM0074D0 - GUAINA( D.8-S.0,5-L.370) More informationQuantity required : 1 |
||||||
|
10 |
CM0074C9 - GUAINA (D.8-S.0,5-L.435) More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/1/8/img/73418.jpg)
11 |
SPARK PLUG CAP "PIAGGIO GENUINE PART" APRILLIA 850 MANA -GU02717450- More informationQuantity required : 2 |
||||||
|
11 |
2D000205 - CACHE ANTI-PARASITE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/4/1/6/img/99416.jpg)
12 |
SPARK PLUG NGK CPR8EB-9 "PIAGGIO GENUINE PART" MOTO-GUZZI 750 NEVADA, V7, V9 -887481- More informationQuantity required : 2 |
||||||
|
13 |
887948 - RESISTENZA-DIODO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/1/7/img/67817.jpg)
14 |
SENSOR FOR IGNITION "PIAGGIO GENUINE PART"400 X-EVO, BEVERLY, 500 X9/MOTO-GUZZI 1400 CALIFORNIA, 750 V7, 850 V9/APRILIA 1000-1100 RSV-4, TUONO V4, 850 SRV, 400-500 ATLANTIC/GILERA 800 GP -6389915- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/7/5/img/73575.jpg)
15 |
GU98682212 - VIS M5X12 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/8/1/img/132681.JPG)
16 |
GU95008205 - RONDELLE 5,3X10X0,8 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/7/9/img/69479.jpg)
17 |
O'RING GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -847180- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/4/img/71394.jpg)
18 |
AP8120416 - COLLIER, NOIR More informationQuantity required : 1 |
||||||
|
18 |
GU14609650 - COLLIER 3,6X20,6 More informationQuantity required : 31 |
||||||
|
18 |
GU49609601 - COLLIER 2,4X92 More informationQuantity required : 1 |
