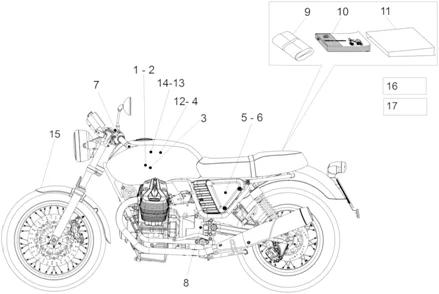

Chassis : 33.33 DÉCALCO ET PLAQUETTES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/540/V7_Special_750_2014_33.33.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/1/4/3/img/99143.jpg)
1 |
886340 - TARGH. STEMMA AQUILA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/6/0/1/img/99601.jpg)
2 |
LABEL- "SIGLE MOTO-GUZZI" "PIAGGIO GENUINE PART" MOTO-GUZZI V7 SPECIAL, V7 STONE -887930- More informationQuantity required : 1 |
||||||
3 |
887931 - TARGHETTA MOTO GUZZ DX-SX SERB BENZ More informationQuantity required : 2 |
||||||
|
4 |
2H000025 - DECALCO FASCIA POST. BICOL. DX SERB. BE. More informationQuantity required : 1 |
||||||
|
4 |
2H000082 - DECALCO FASCIA POST. BICOL. DX SERB. BE. More informationQuantity required : 1 |
||||||
|
5 |
2H000084 - DECALCO V7 SPECIAL DX FIANCHETTO More informationQuantity required : 1 |
||||||
|
5 |
2H000027 - DECALCO V7 SPECIAL DX FIANCHETTO More informationQuantity required : 1 |
||||||
|
6 |
2H000028 - DECALCO V7 SPECIAL SX FIANCHETTO More informationQuantity required : 1 |
||||||
|
6 |
2H000085 - DECALCO V7 SPECIAL SX FIANCHETTO More informationQuantity required : 1 |
||||||
|
7 |
883598 - TARGHETTA OVALE MOTOGUZZI More informationQuantity required : 1 |
||||||
|
8 |
895839 - DECALCO More informationQuantity required : 2 |
||||||
|
9 |
887443 - TROUSSE ATTREZZI More informationQuantity required : 1 |
||||||
|
11 |
GU05900130 - SACHET POUR DOCUMENTS More informationQuantity required : 2 |
||||||
|
12 |
2H000026 - DECALCO FASCIA POST. BICOL. SX SERB. BE. More informationQuantity required : 1 |
||||||
|
12 |
2H000083 - DECALCO FASCIA POST. BICOL. SX SERB. BE. More informationQuantity required : 1 |
||||||
|
13 |
2H000024 - DECALCO FASCIA ANT. SX SERBATOIO BE. More informationQuantity required : 1 |
||||||
|
13 |
2H000081 - DECALCO FASCIA ANT. SX SERBATOIO BE. More informationQuantity required : 1 |
||||||
|
14 |
2H000080 - DECALCO FASCIA ANT. DX SERBATOIO BE. More informationQuantity required : 1 |
||||||
|
14 |
2H000023 - DECALCO FASCIA ANT. DX SERBATOIO BE. More informationQuantity required : 1 |
||||||
|
15 |
886141 - DECALCO OVALE MOTO GUZZI AQUILA NERA More informationQuantity required : 1 |
||||||
|
16 |
2G000013 - DECALCO More informationQuantity required : 1 |
||||||
|
16 |
GU03995730 - "DECALCO ""UNLEADED FUELONLY""" More informationQuantity required : 1 |
||||||
|
17 |
GU32944310 - DECALCO PROTECT. More informationQuantity required : 1 |
