Vehicle Exploded View - MOTO-GUZZI V7 750 Special 750 2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

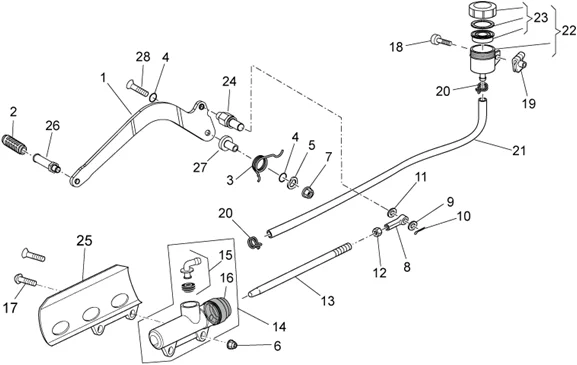

Chassis : 33.26 MAÎT.CYL. FREIN AR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/540/V7_Special_750_2014_33.26.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/5/8/8/img/99588.jpg)
1 |
REAR BRAKE PEDAL "PIAGGIO GENUINE PART" MOTO-GUZZI 750 V7 SPECIAL, STONE, STORNELLO -887910- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/2/img/71422.jpg)
2 |
LEVER RUBBER FOR REAR BRAKE LEVER "PIAGGIO GENUINE PART" FOR MOTO-GUZZI 850-1200 NORGE, BREVA, 1200 SPORT -AP8120912- More informationQuantity required : 1 |
||||||
3 |
978969 - MOLLA RITORNO LEVA FRENO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/3/8/img/71738.jpg)
4 |
AP8144007 - JOINT TORIQUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/2/img/73552.jpg)
5 |
GU95005310 - VIS More informationQuantity required : 1 |
||||||
|
6 |
GU92630206 - ECROU M6X1 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/0/img/73550.JPG)
7 |
NUT - CAP NUT M8 FOR EXHAUST OR CRANKCASE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI -GU92660021- More informationQuantity required : 1 |
||||||
|
8 |
GU18257551 - PIVOT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/6/6/img/132666.JPG)
9 |
GU95005308 - RONDELLE More informationQuantity required : 1 |
||||||
|
10 |
GU95500221 - GOUPILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/6/4/6/img/110646.JPG)
11 |
658837 - RONDELLE More informationQuantity required : 1 |
||||||
|
12 |
GU92609007 - ECROU More informationQuantity required : 1 |
||||||
|
13 |
978970 - ASTA NUDA COMANDO POMPA FRENO POST More informationQuantity required : 1 |
||||||
|
14 |
AP8133643 - MA?T.CYL.FREIN AR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/9/7/img/72197.JPG)
15 |
AP8213057 - RACCORD POMPE ARRIERE More informationQuantity required : 1 |
||||||
|
16 |
AP8113288 - SOUFFLET EN CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
17 |
GU98370625 - VIS M6X25 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
18 |
SCREW - FLANGE 5X16 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA +MOTO-GUZZI -AP8152298- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/9/8/img/65998.jpg)
19 |
248419 - PLAQUETTE PLASTIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/5/img/71155.jpg)
20 |
AP8101595 - COLLIER More informationQuantity required : 2 |
||||||
|
21 |
GU00823950050 - T GOMMA 5X9 More informationQuantity required : 1 |
||||||
|
22 |
AP8133873 - SERBATOIO OLIO FRENI More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/0/6/img/71306.jpg)
23 |
CAP FOR BRAKE MASTER CYLINDER "PIAGGIO GENUINE PART" MOTO-GUZZI 750 V7, NEVADA, BREVA/APRILIA 125 MX, RS, 650 PEGASO, 1000 RSN-2, 1200 CAPONORD, DORSODURO -AP8113553- More informationQuantity required : 1 |
||||||
|
24 |
887911 - PERNO LEVA FRENO More informationQuantity required : 1 |
||||||
|
25 |
GU01665410 - PROTEZIONE POMPA FRENO NERO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/9/0/3/3/img/159033.JPG)
26 |
ROD FOR GEARBOX SELECTOR OR BRAKE PEDAL "PIAGGIO GENUINE PARTS" MOTO-GUZZI V7, V9 -2B004818- More informationQuantity required : 1 |
||||||
|
27 |
887952 - BUSSOLA LEVA FRENO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/1/1/7/img/101117.jpg)
28 |
B063443 - (*)VITE TSPEI IX M8X50 A4 More informationQuantity required : 1 |
