Vehicle Exploded View - MOTO-GUZZI V7 750 Racer 750 USA CND 2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

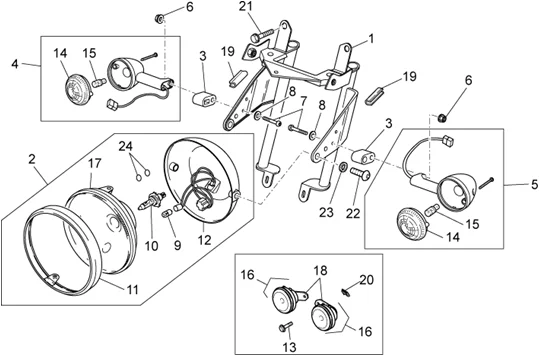

Chassis : 33.28 FEUX AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/538/V7_Racer_750_USA_CND_2015_33.28.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/6/0/0/img/131600.jpg)
1 |
HEADLIGHT SUPPORT CLAMP "PIAGGIO GENUINE PART" MOTO-GUZZI 750 BREVA, NEVADA, V7 -GU32506360- More informationQuantity required : 1 |
||||||
2 |
978311 - FANALE ANT DX More informationQuantity required : 1 |
||||||
|
3 |
GU32753410 - ENTRETOISE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/1/6/9/img/101169.jpg)
4 |
FLASHER-FRONT-RIGHT/REAR-LEFT "PIAGGIO GENUINE PART" MOTO-GUZZI 750 NEVADA, V7 -B063800- More informationQuantity required : 1 |
||||||
|
5 |
FLASHER-FRONT-LEFT/REAR-RIGHT "PIAGGIO GENUINE PART" MOTO-GUZZI 750 NEVADA, V7 -B063801- More informationQuantity required : 1 |
||||||
|
6 |
GU92787006 - ECROU More informationQuantity required : 2 |
||||||
|
7 |
GU98370655 - VIS M6X55 More informationQuantity required : 2 |
||||||
|
8 |
GU95021206 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/8/img/139408.jpg)
9 |
LIGHT BULB 12V 5W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -2920225- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/6/img/66256.jpg)
10 |
LIGHT BULB 12V-60/55W H4 "PIAGGIO GENUINE PART" COMMON TO ALL THE MAXISCOOTER AND MOTORCYCLE RANGE -292723- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/8/9/img/67889.jpg)
11 |
CHROMED HEADLAMP SHROUD "PIAGGIO GENUINE PART" MOTO-GUZZI 750 V7, NEVADA, BREVA, 1100 GRISO, V11, 940 BELLAGIO/PIAGGIO 250-500 BEVERLY CRUISER 2007>2012 -640598 - More informationQuantity required : 1 |
||||||
|
12 |
981149 - (*) CALOTTA NERA OPACO 80 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
13 |
AP8152278 - VIS BRIDE M6X16 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/7/5/2/img/131752.jpg)
14 |
GU32753711 - VITRE CLIGNOTANT More informationQuantity required : 2 |
||||||
|
15 |
GU93450127 - LAMPE (OU AMPOULE) 12V-10W More informationQuantity required : 2 |
||||||
|
16 |
890979 - KLAXON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/0/5/6/img/129056.jpg)
17 |
HEADLAMP "PIAGGIO GENUINE PART" MOTO-GUZZI GRISO, NEVADA, V7 -GU06740400- More informationQuantity required : 1 |
||||||
|
18 |
GU01744200 - STAFFA SUPP.CLAXON More informationQuantity required : 6 |
||||||
|
19 |
GU00823931055 - PROFILO GOMMA EPDM More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
20 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/2/3/8/img/133238.jpg)
21 |
GU98880540 - VIS M10X40 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/8/0/img/73580.jpg)
22 |
GU98692420 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/6/6/img/132666.JPG)
23 |
GU95005308 - RONDELLE More informationQuantity required : 2 |
||||||
|
24 |
883417 - ANELLO DI TENUTA (O-RING) 12X1.5 More informationQuantity required : 2 |
