Vehicle Exploded View - MOTO-GUZZI V7 750 Racer 750 USA CND 2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

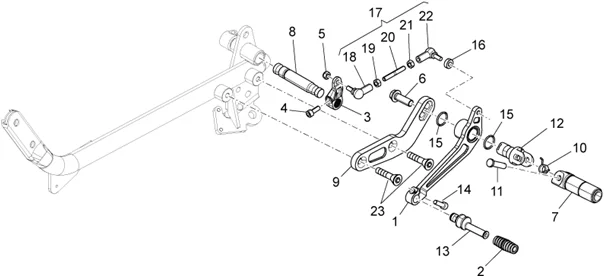

Chassis : 33.06 LEVIER BOÎTE DE VITESSES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/538/V7_Racer_750_USA_CND_2015_33.06.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/7/4/4/img/99744.jpg)
1 |
GEARBOX SELECTOR "PIAGGIO GENUINE PART" MOTO-GUZZI 750 V7 RACER -898282- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/2/img/71422.jpg)
2 |
LEVER RUBBER FOR REAR BRAKE LEVER "PIAGGIO GENUINE PART" FOR MOTO-GUZZI 850-1200 NORGE, BREVA, 1200 SPORT -AP8120912- More informationQuantity required : 1 |
||||||
3 |
898283 - LEVA COMANDO CAMBIO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/4/img/71824.jpg)
4 |
SCREW - (6X16) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE + MAXISCOOTER APRILIA -AP8150137- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/2/img/71882.jpg)
5 |
AP8150430 - ECROU AUTOFR. BAS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/6/img/71966.jpg)
6 |
AP8152320 - VIS BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/7/4/3/img/99743.jpg)
7 |
RIGHT RIDER FOOTREST OU GAUCHE "PIAGGIO GENUINE PART" MOTO-GUZZI V7 RACER -898281- More informationQuantity required : 1 |
||||||
|
8 |
GU32251610 - GOUJON DE LEVIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/7/4/6/img/99746.jpg)
9 |
FOOTREST SUPPORT- LEFT "PIAGGIO GENUINE PART" MOTO-GUZZI 750 V7 RACER -898284 - More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/1/0/img/72310.jpg)
10 |
FOOTREST SPRING "PIAGGIO GENUINE PART" MOTO-GUZZI BREVA, NORGE, STELVIO/APRILIA 750-900 SHIVER -AP8221277- More informationQuantity required : 1 |
||||||
|
11 |
GU23442210 - PIVOT More informationQuantity required : 1 |
||||||
|
12 |
898611 - SUPPORTO PEDANA PILOTA SX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/1/8/5/img/99185.jpg)
13 |
GEAR SELECTOR OR REAR BRAKE PIN "PIAGGIO GENUINE PART" MOTO-GUZZI 750 V7 RACER -886665- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/5/img/71815.jpg)
14 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8150044- More informationQuantity required : 1 |
||||||
|
15 |
AP9100477 - ANELLO OR D.FILO 2 D.INT.18 More informationQuantity required : 2 |
||||||
|
16 |
886668 - DISTANZIALE More informationQuantity required : 1 |
||||||
|
17 |
887280 - TIRANTE COMANDO CAMBIO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/8/5/img/72185.jpg)
18 |
GEARBOX SELECTOR BALL JOINT "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI ET APRILIA -AP8210007- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/2/img/71812.jpg)
19 |
AP8150026 - ECROU More informationQuantity required : 1 |
||||||
|
20 |
887280 - TIRANTE COMANDO CAMBIO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/8/img/71918.jpg)
21 |
AP8152138 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/6/8/img/71268.jpg)
22 |
GEARBOX SELECTOR BALL JOINT "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA /MOTO-GUZZI -AP8110053- More informationQuantity required : 1 |
||||||
|
23 |
GU98252420 - VIS FHC M8X20 More informationQuantity required : 2 |
