Vehicle Exploded View - MOTO-GUZZI V7 750 Racer 750 USA CND 2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

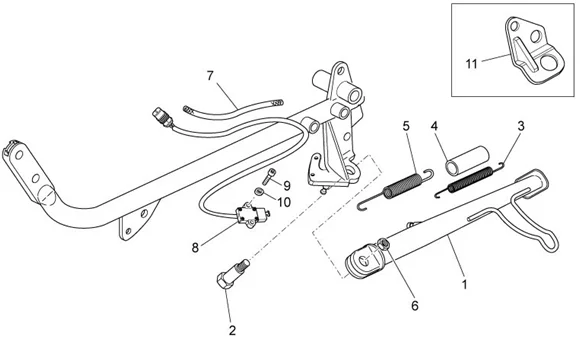

Chassis : 33.03 BÉQUILLE LATÉRALE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/538/V7_Racer_750_USA_CND_2015_33.03.PNG)
1 |
883471 - CAVALLETTO LATERALE USA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/7/6/img/71476.jpg)
2 |
SCREW - FOR SIDE STAND "PIAGGIO GENUINE PART" MOTO-GUZZI GRISO, NEVADA, NORGE, STELVIO -AP8121607- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/6/img/71426.jpg)
3 |
RETURN SPRING FOR STAND (SMALL) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA ET MOTO-GUZZI -AP8121014- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/5/img/71185.jpg)
4 |
SIDE STAND SPRING COVER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA + MOTO-GUZZI -AP8102524- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/0/2/img/72302.jpg)
5 |
AP8221197 - RESSORT RAPPEL BEQ. More informationQuantity required : 1 |
||||||
|
6 |
GU32433011 - ECROU More informationQuantity required : 1 |
||||||
|
7 |
GU00823923140 - GUAINA NERA D16 S0,4 VETR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/3/8/img/139438.JPG)
8 |
AP81278565 - INTERRUTTORE LINEARE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/0/9/8/img/133098.jpg)
9 |
GU98612216 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/9/0/img/132690.jpg)
10 |
GU95020105 - RONDELLE More informationQuantity required : 2 |
||||||
|
11 |
GU32432711 - More informationQuantity required : 1 |
