Vehicle Exploded View - MOTO-GUZZI V7 750 Racer 750 USA CND 2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

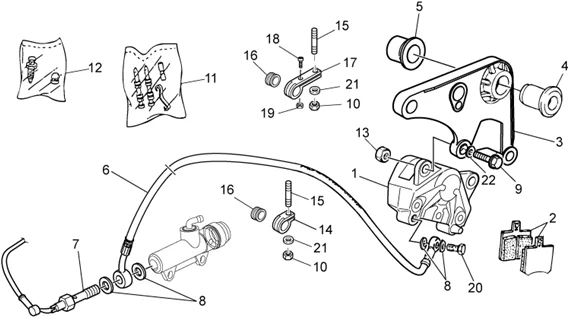

Chassis : 33.27 PINCE FREIN AR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/538/V7_Racer_750_USA_CND_2015_33.27.PNG)
1 |
887449 - PINZA FRENO POST More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/7/2/img/71672.jpg)
2 |
BRAKE PADS - "PIAGGIO GENUINE PART" MOTO-GUZZI 750 V7 REAR/APRILIA 125-250 SPORT-CITY FRONT, 400-500 SCARABEO FRONT, 850 NA-MANA REAR -AP8133798- More informationQuantity required : 1 |
||||||
|
3 |
887431 - PIASTRA SUPPORTO PINZA POST More informationQuantity required : 1 |
||||||
|
4 |
GU31634281 - BAGUE More informationQuantity required : 1 |
||||||
|
5 |
GU32634160 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
6 |
B063750 - TUBO FRENO POST More informationQuantity required : 1 |
||||||
|
7 |
883192 - INTERUTTORE STOP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
8 |
AP8113004 - RONDELLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/0/img/71950.jpg)
9 |
SCREW - (8X30) MULTI PURPOSE "PIAGGIO GENUINE PART" -AP8152288- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
10 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 2 |
||||||
|
11 |
GU31659181 - KIT PLAQUETTES More informationQuantity required : 1 |
||||||
|
12 |
GU31659281 - PURGE+CAPUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
13 |
NUT - SAFETY NUT "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA /MOTO-GUZZI -AP8152300- More informationQuantity required : 2 |
||||||
|
14 |
GU03658430 - COLLIER More informationQuantity required : 1 |
||||||
|
15 |
GU96451316 - VIS SANS TETE More informationQuantity required : 1 |
||||||
|
16 |
GU03658201 - BAGUE More informationQuantity required : 2 |
||||||
|
17 |
GU03658330 - COLLIER More informationQuantity required : 1 |
||||||
|
18 |
GU98257410 - VIS More informationQuantity required : 1 |
||||||
|
19 |
GU92630104 - ECROU M4X0,7 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
20 |
AP8113003 - VIS TUYAU HUILE More informationQuantity required : 1 |
||||||
|
21 |
GU95008306 - RONDELLE 6,4X12X1,2 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/3/2/img/131932.jpg)
22 |
GU61270300 - RONDELLE ELASTIQUE More informationQuantity required : 1 |
