Vehicle Exploded View - MOTO-GUZZI V35 350 II 350 1981-1985
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

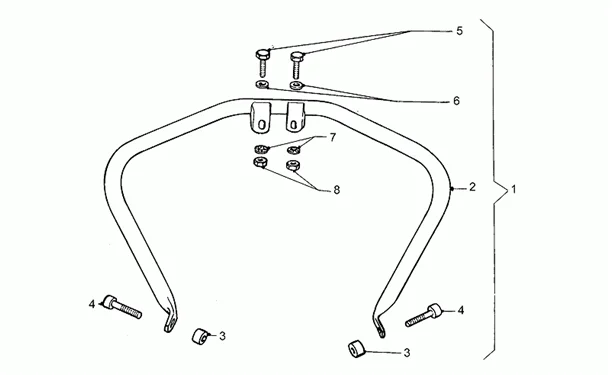

Chassis : 33.07 PARE-CHOCS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/526/V35_II_350_1981-1985_33.07.PNG)
3 |
GU91181112 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
4 |
GU98620540 - VIS M10X40 More informationQuantity required : 2 |
||||||
|
5 |
GU98054420 - VIS M8X20 More informationQuantity required : 2 |
||||||
|
6 |
GU95004208 - RONDELLE More informationQuantity required : 2 |
||||||
|
7 |
GU95021108 - RONDELLE ELASTIQUE More informationQuantity required : 2 |
||||||
|
8 |
GU92602208 - ECROU M8X1,25 More informationQuantity required : 2 |
